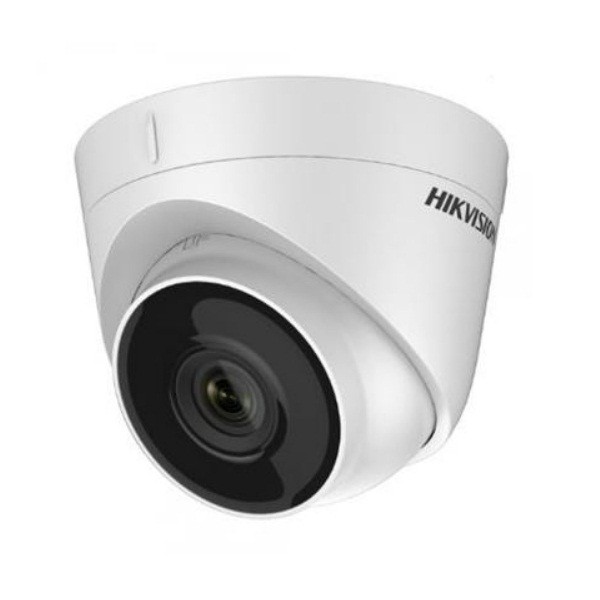

DS-2CD1343G0-I

الوصف

كاميرات
Image Sensor 1/3″ progressive scan CMOS
Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)
Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter
Slow Shutter Yes
Auto-Iris No
Day &Night IR cut filter
Digital Noise Reduction 3D DNR
WDR Digital WDR
Angle Adjustment Pan: 0° to 360°, tilt: 0°to 75°, rotation: 0° to 360°
Lens
Focal length 2.8 mm, 4 mm, 6 mm
Aperture F2.0
Focus No
FOV
2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°
4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°
6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°
Lens Mount M12
IR
IR Range Up to 30 m
Wavelength 850 nm
Compression Standard
Video Compression Main stream: H.265/H.264
Sub stream: H.265/H.264/MJPEG
H.264 Type Baseline Profile/Main Profile/High Profile
H.264+ Main stream supports
H.265 Type Main Profile
H.265+ Main stream supports
Video Bit Rate 32 Kbps to 8 Mbps
Smart Feature-set
Region of Interest 1 fixed region for main stream and sub-stream
Max. Resolution 2560 × 1440
Main Stream
Max. Frame Rate
50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-stream
Max. Frame Rate
50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)
60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)
Image Enhancement BLC, 3D DNR
Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or
web browser
Day/Night Switch Auto, scheduled
Network
Network Storage NAS (NFS, SMB/CIFS)
Alarm Trigger Motion detection, video tampering alarm, illegal login
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,
SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Specification
Available Models
DS-2CD1343G0-I (2.8 mm), DS-2CD1343G0-I (4 mm), DS-2CD1343G0-I (6 mm)
Firmware Version 5.5.2
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User/Host
Up to 32 users
3 levels: Administrator, Operator and User
Client iVMS-4200, Hik-Connect, iVMS-5200
Web Browser IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+
Interface
Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port
General
Operating Conditions -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug
PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.4 A, Max: 5 W
PoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W
Ingress Protection
IP67
TVS 2000V lightning protection, surge protection and voltage transient protection
Material Metal & Plastic
Dimensions
Camera: Ø 110 mm × 93.2 mm ( 4.3″ × 3.7″)
With package: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight Camera: Approx. 350 g (0.77 lb.)
With package: Approx. 610 g (1.3 lb.)Camera

Image Sensor 1/3″ progressive scan CMOS

Min. Illumination Color: 0.01 Lux @(F1.2, AGC ON), 0.028Lux @ (F2.0, AGC ON)

Shutter Speed 1/3 s to 1/100, 000 s, support slow shutter

Slow Shutter Yes

Auto-Iris No

Day &Night IR cut filter

Digital Noise Reduction 3D DNR

WDR Digital WDR

Angle Adjustment Pan: 0° to 360°, tilt: 0°to 75°, rotation: 0° to 360°

Lens

Focal length 2.8 mm, 4 mm, 6 mm

Aperture F2.0

Focus No

FOV

2.8 mm, horizontal FOV 100°, vertical FOV 55°, diagonal FOV 117°

4 mm, horizontal FOV 77°, vertical FOV 42°, diagonal FOV 88°

6 mm, horizontal FOV 51°, vertical FOV 28°, diagonal FOV 58°

Lens Mount M12

IR

IR Range Up to 30 m

Wavelength 850 nm

Compression Standard

Video Compression Main stream: H.265/H.264

Sub stream: H.265/H.264/MJPEG

H.264 Type Baseline Profile/Main Profile/High Profile

H.264+ Main stream supports

H.265 Type Main Profile

H.265+ Main stream supports

Video Bit Rate 32 Kbps to 8 Mbps

Smart Feature-set

Region of Interest 1 fixed region for main stream and sub-stream


Max. Resolution 2560 × 1440

Main Stream

Max. Frame Rate

50Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 20fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub-stream

Max. Frame Rate

50Hz: 20fps (704 × 576, 352 × 288, 640 × 480, 320 × 240)

60Hz: 20fps (704 × 480, 352 × 240, 640 × 480, 320 × 240)

Image Enhancement BLC, 3D DNR

Image Setting Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or

web browser

Day/Night Switch Auto, scheduled

Network

Network Storage NAS (NFS, SMB/CIFS)

Alarm Trigger Motion detection, video tampering alarm, illegal login

Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP,

SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour

General Function Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Specification

Available Models

DS-2CD1343G0-I (2.8 mm), DS-2CD1343G0-I (4 mm), DS-2CD1343G0-I (6 mm)

Firmware Version 5.5.2

API ONVIF (PROFILE S, PROFILE G), ISAPI

Simultaneous Live View Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Client iVMS-4200, Hik-Connect, iVMS-5200

Web Browser IIE7+, Chrome18-42, Firefox5.0+, Safari5.02+

Interface

Communication Interface 1 RJ45 10M/100M self-adaptive Ethernet port

General

Operating Conditions -30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)

Power Supply 12 VDC ± 25%, 5.5 mm coaxial power plug

PoE (802.3af, class 3)

Power Consumption and Current 12 VDC, 0.4 A, Max: 5 W

PoE: (802.3af, 37 V to 57 V), 0.2 A to 0.13 A, Max: 7 W

Ingress Protection

IP67

TVS 2000V lightning protection, surge protection and voltage transient protection

Material Metal & Plastic

Dimensions

Camera: Ø 110 mm × 93.2 mm ( 4.3″ × 3.7″)

With package: 150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)

Weight Camera: Approx. 350 g (0.77 lb.)

With package: Approx. 610 g (1.3 lb.)
