ACTRE (ASUS Certificate Training of Repair Engineer)

Handheld system training
Level2
Basic Skill
Statement of Confidentiality
All recipients of this document must treat this training material as
ASUS confidential and must not disclose it to any party other than
the recipients’ employees on a need to know basis, or other
individuals authorized under a written Confidential Disclosure
Agreement signed by ASUS and the recipient.
ASUS Confidential

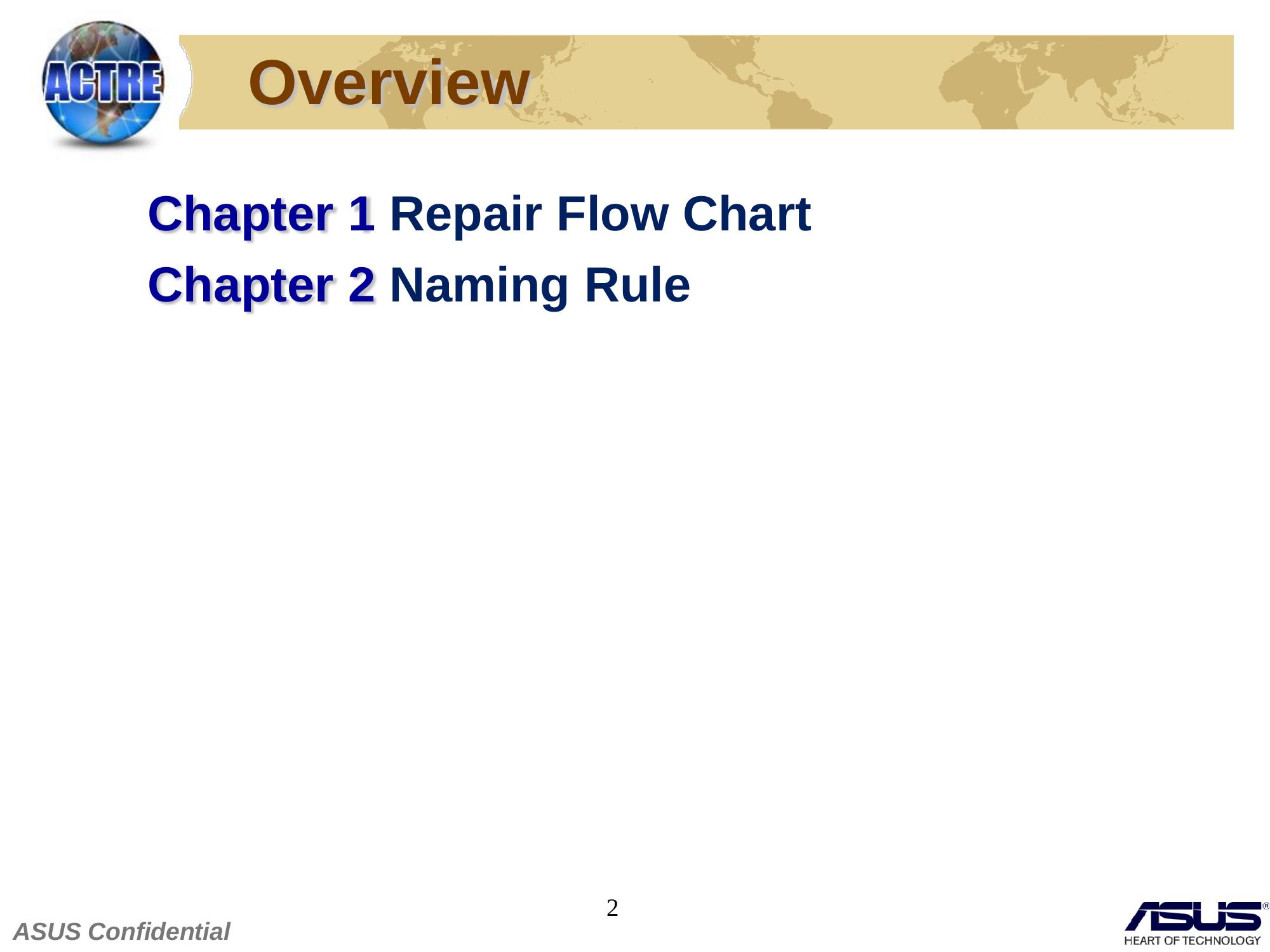

Overview
Chapter 1 Repair Flow Chart
Chapter 2 Naming Rule
2
ASUS Confidential

Chapter 1
Repair Flow Chart
ASUS Confidential

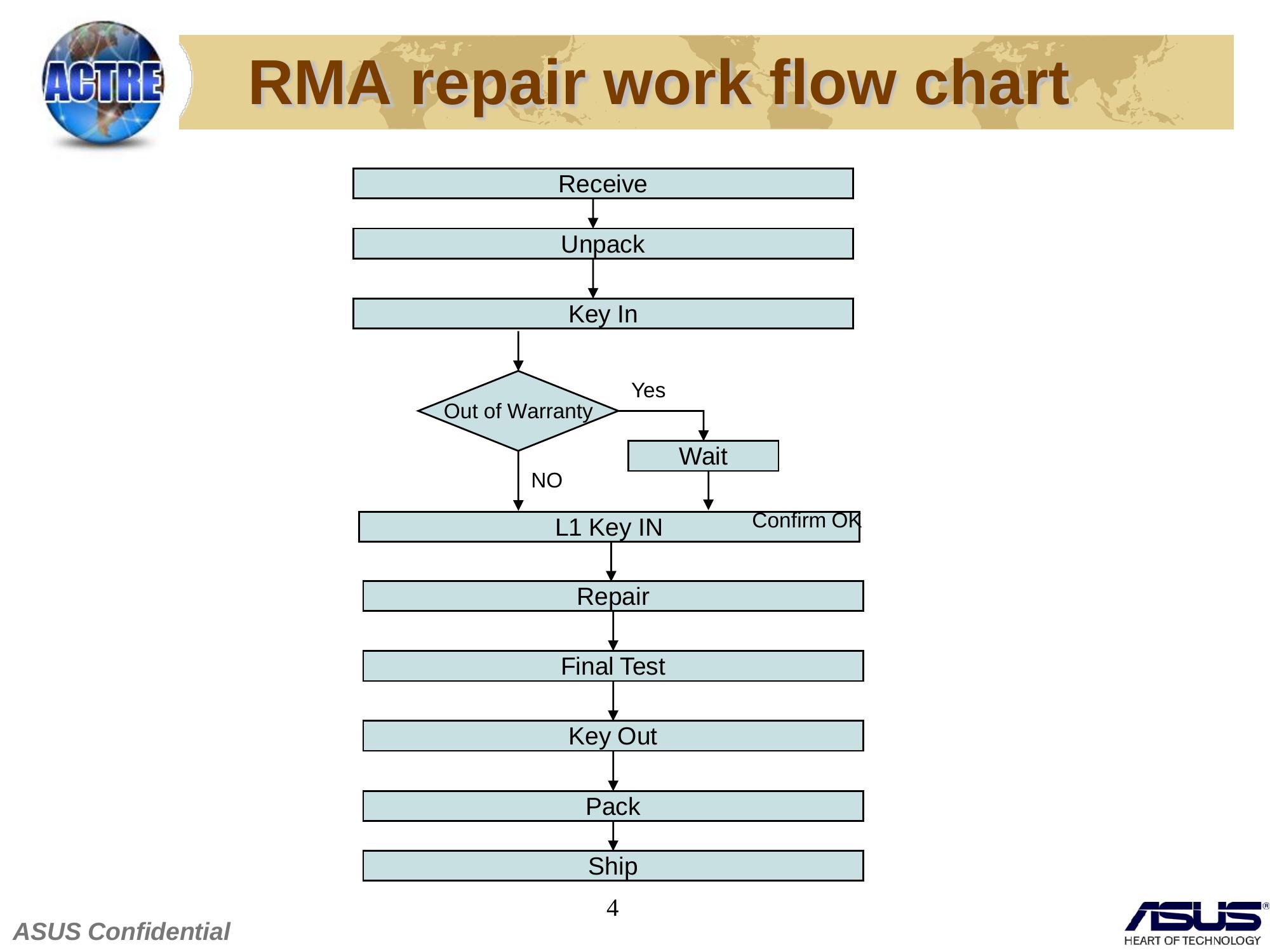

RMA repair work flow chart
Receive
Unpack
Key In
Yes
Out of Warranty
Wait
NO
L1 Key IN Confirm OK
Repair
Final Test
Key Out
Pack
Ship
4
ASUS Confidential

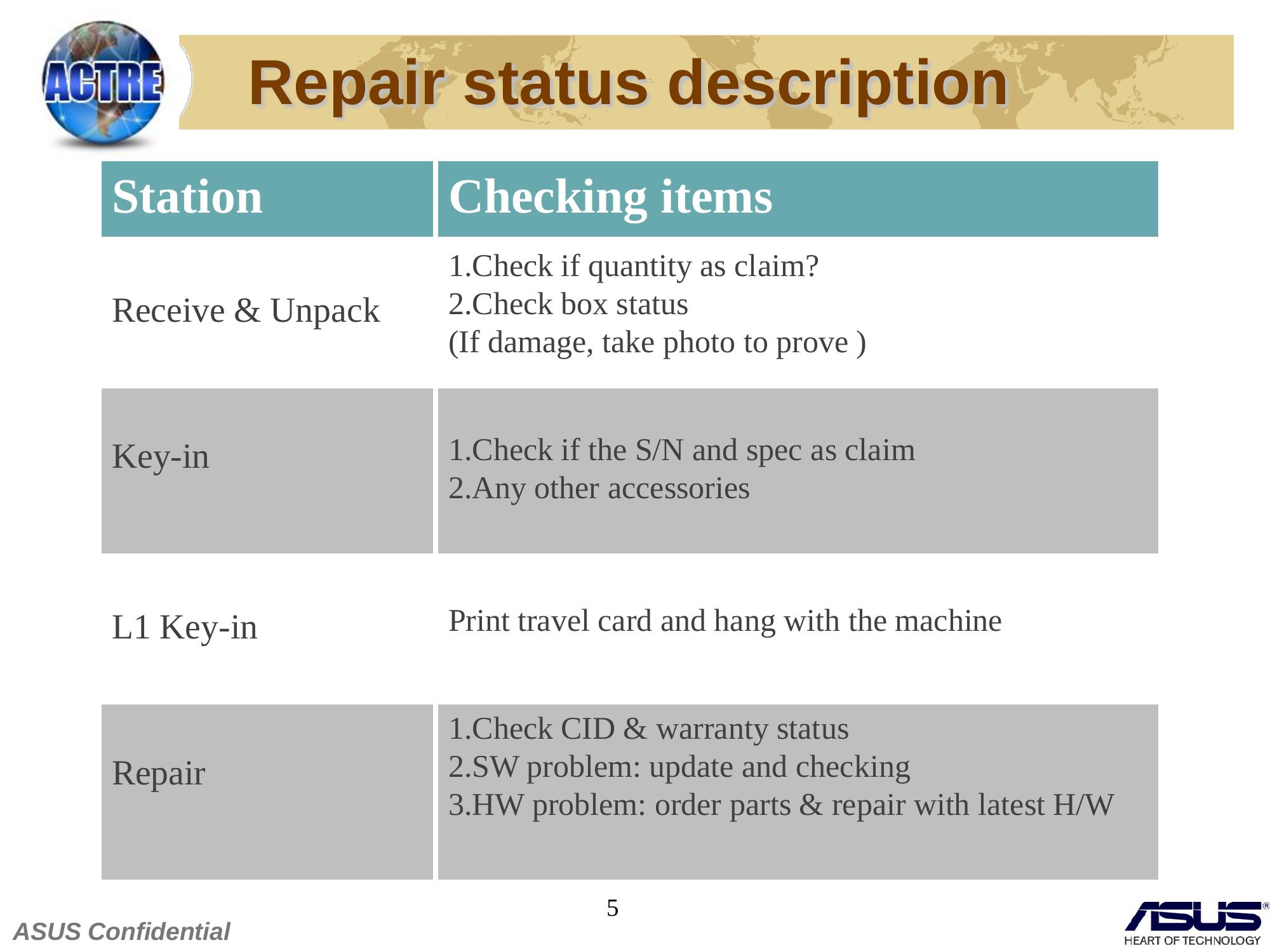

Repair status description
Station Checking items
1.Check if quantity as claim?
Receive & Unpack 2.Check box status
(If damage, take photo to prove )
Key-in 1.Check if the S/N and spec as claim
2.Any other accessories
L1 Key-in Print travel card and hang with the machine
1.Check CID & warranty status
Repair 2.SW problem: update and checking
3.HW problem: order parts & repair with latest H/W
5
ASUS Confidential

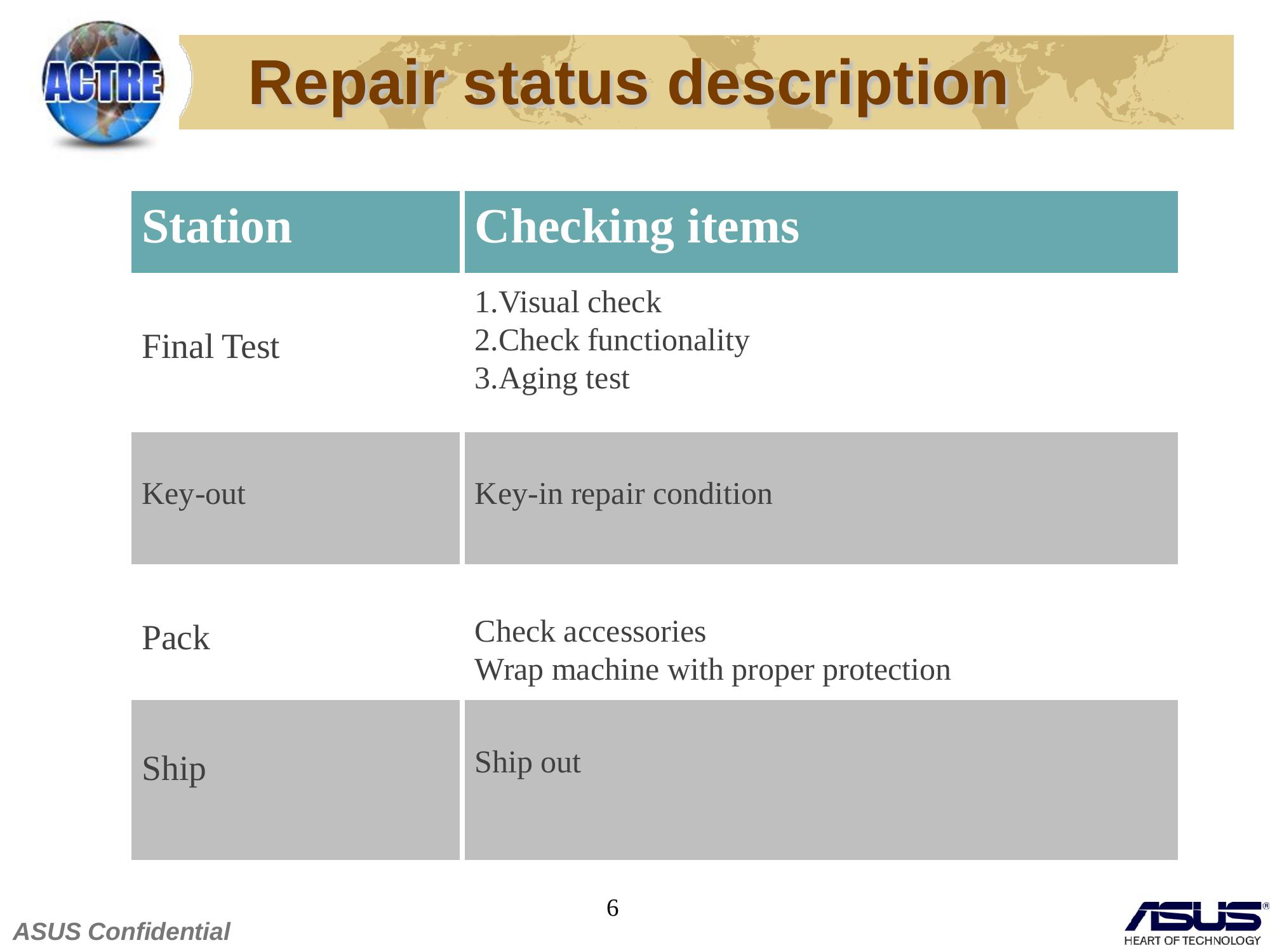

Repair status description
Station Checking items
1.Visual check
Final Test 2.Check functionality
3.Aging test
Key-out Key-in repair condition
Pack Check accessories
Wrap machine with proper protection
Ship Ship out
6
ASUS Confidential

Chapter 2
Naming Rule
ASUS Confidential

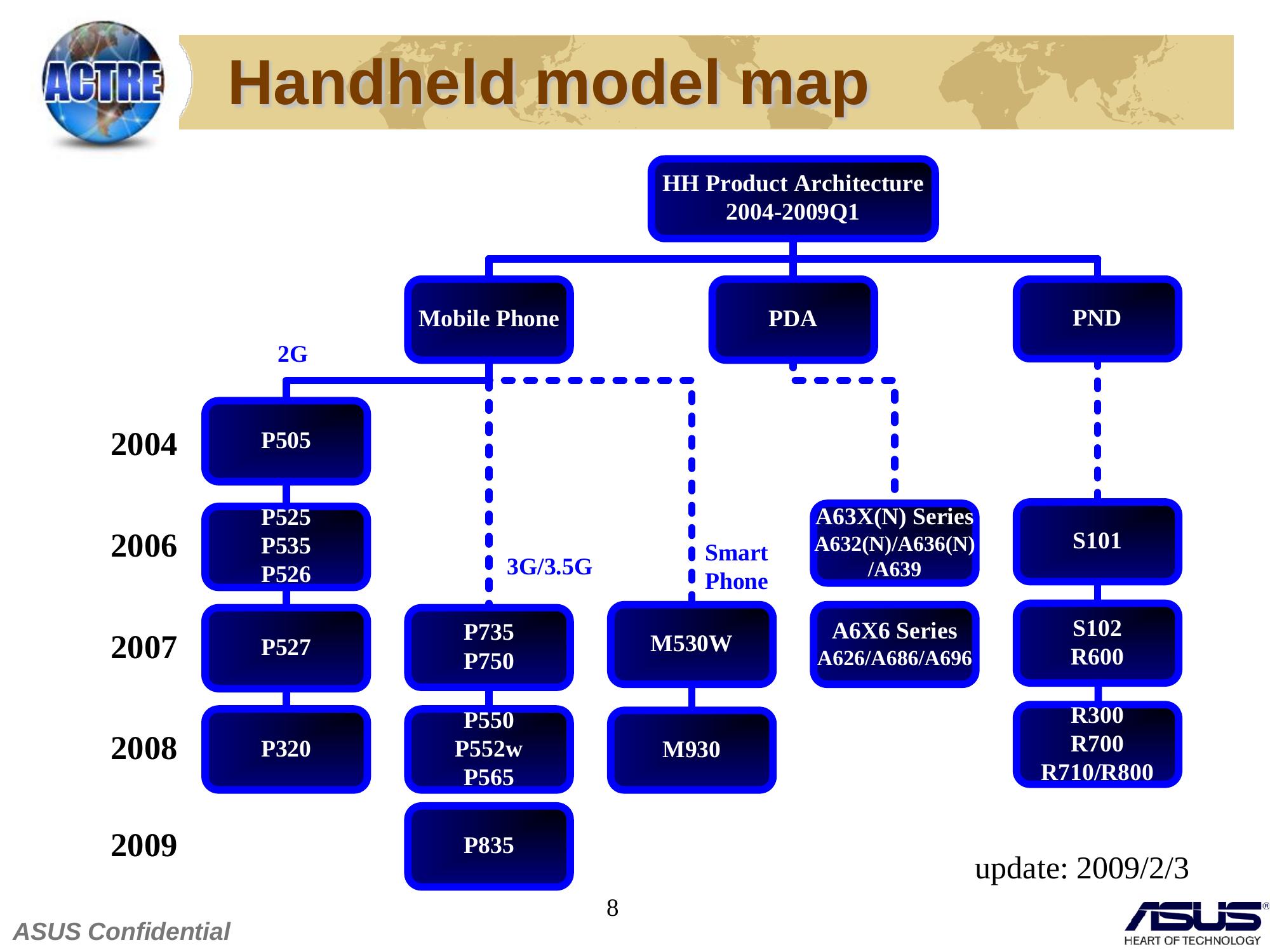

Handheld model map
HH Product Architecture
2004-2009Q1
Mobile Phone PDA PND
2G
2004 P505
P525 A63X(N) Series
2006 P535 A632(N)/A636(N) S101
Smart
P526 3G/3.5G /A639
Phone
P735 A6X6 Series S102
2007 P527 M530W
P750 A626/A686/A696 R600
P550 R300
2008 P320 P552w M930 R700
P565 R710/R800
2009 P835
update: 2009/2/3
8
ASUS Confidential

90 PN Rule

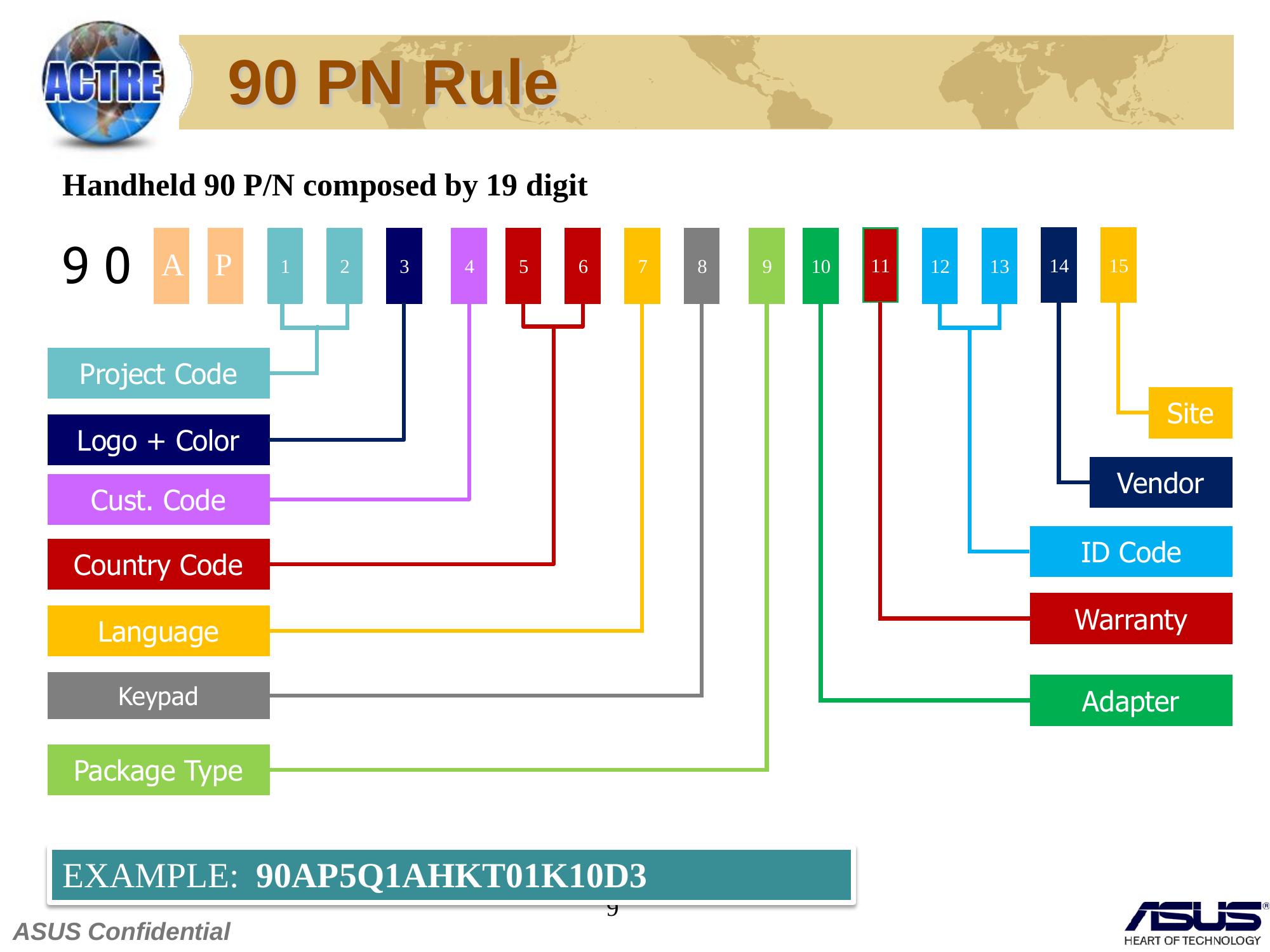

Handheld 90 P/N composed by 19 digit
9 0
A P
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
Project Code
Site
Logo + Color
Vendor
Cust. Code
ID Code
Country Code
Warranty
Language
Keypad Adapter
Package Type
EXAMPLE: 90AP5Q1AHKT01K10D3
9
ASUS Confidential

90 PN Rule

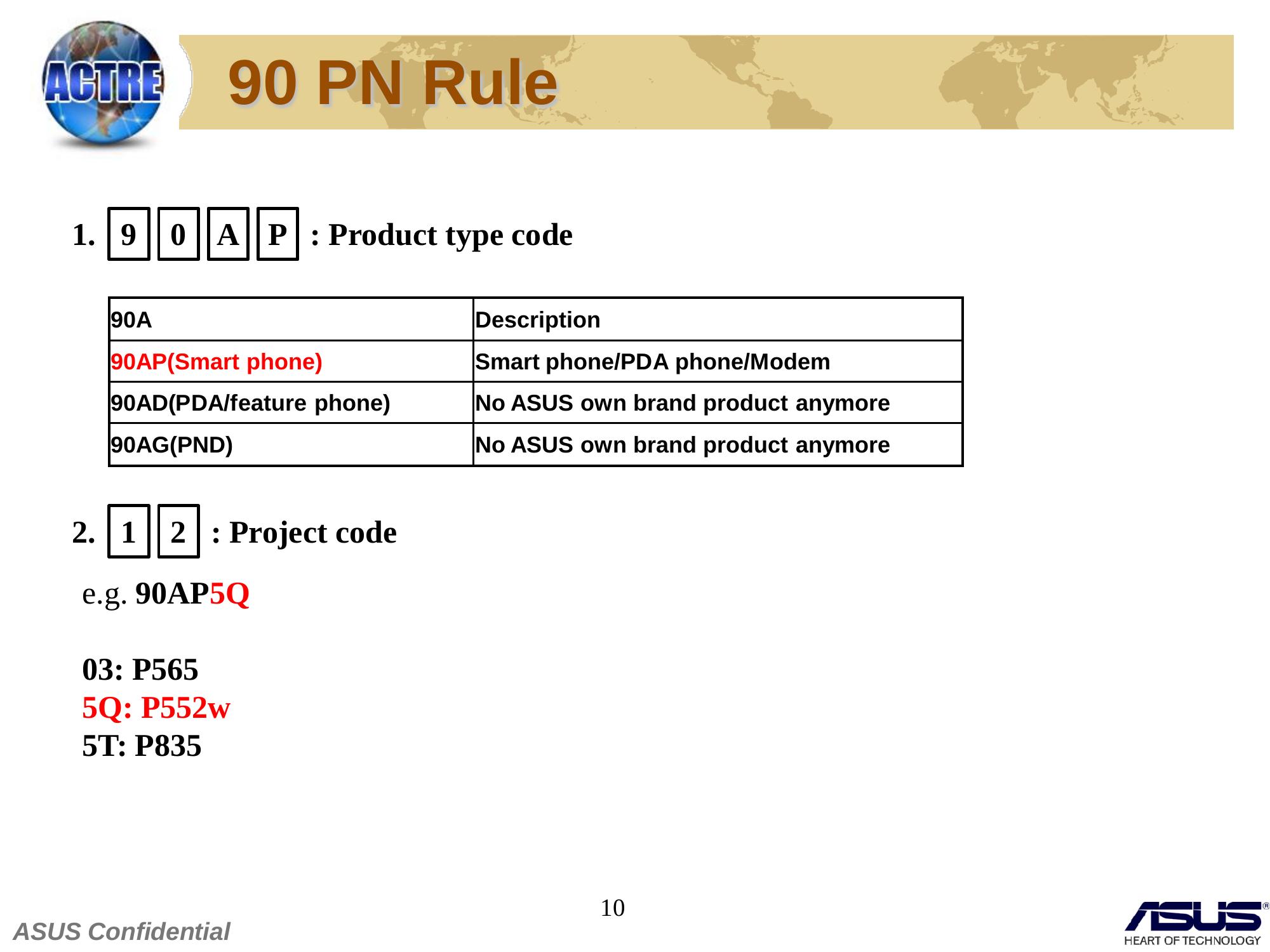

1. 9 0 A P : Product type code
90A Description
90AP(Smart phone) Smart phone/PDA phone/Modem
90AD(PDA/feature phone) No ASUS own brand product anymore
90AG(PND) No ASUS own brand product anymore
2. 1 2 : Project code
e.g. 90AP5Q
03: P565
5Q: P552w
5T: P835
10
ASUS Confidential

90 PN Rule

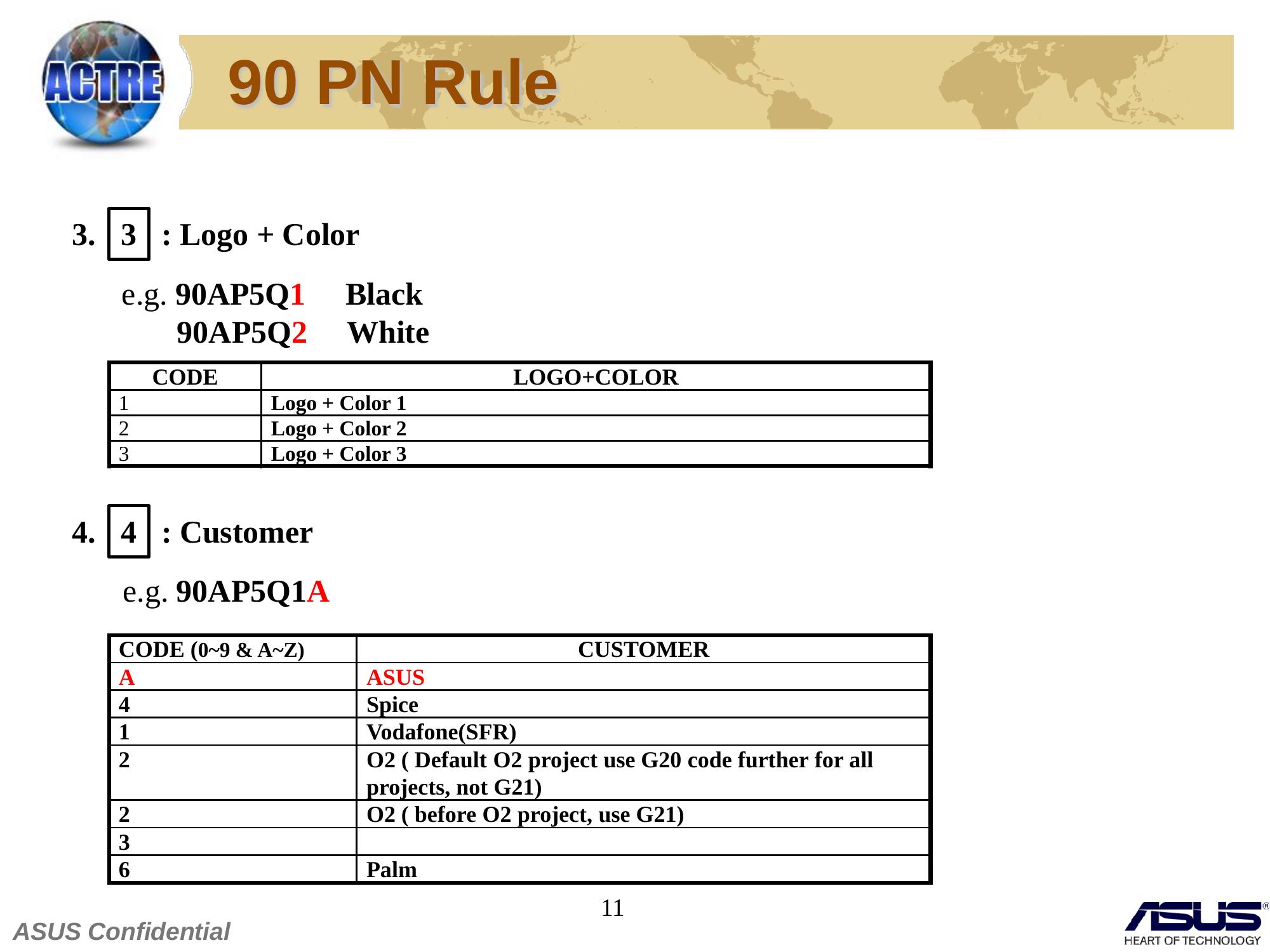

3. 3 : Logo + Color
e.g. 90AP5Q1 Black
90AP5Q2 White
CODE LOGO+COLOR
1 Logo + Color 1
2 Logo + Color 2
3 Logo + Color 3
4. 4 : Customer
e.g. 90AP5Q1A
CODE (0~9 & A~Z) CUSTOMER
A ASUS
4 Spice
1 Vodafone(SFR)
2 O2 ( Default O2 project use G20 code further for all
projects, not G21)
2 O2 ( before O2 project, use G21)
3
6 Palm
11
ASUS Confidential

90 PN Rule

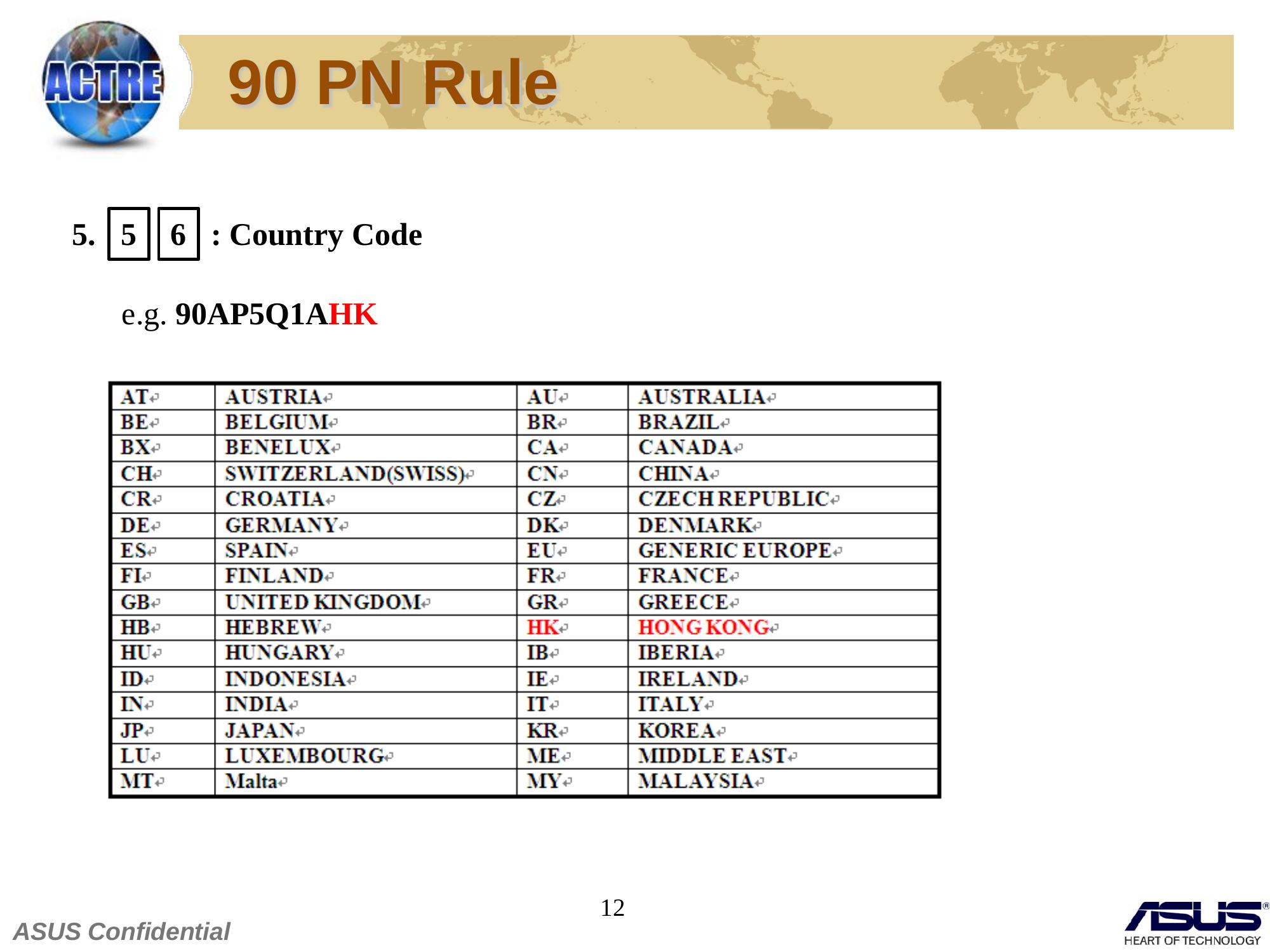

5. 5 6 : Country Code
e.g. 90AP5Q1AHK
12
ASUS Confidential

90 PN Rule

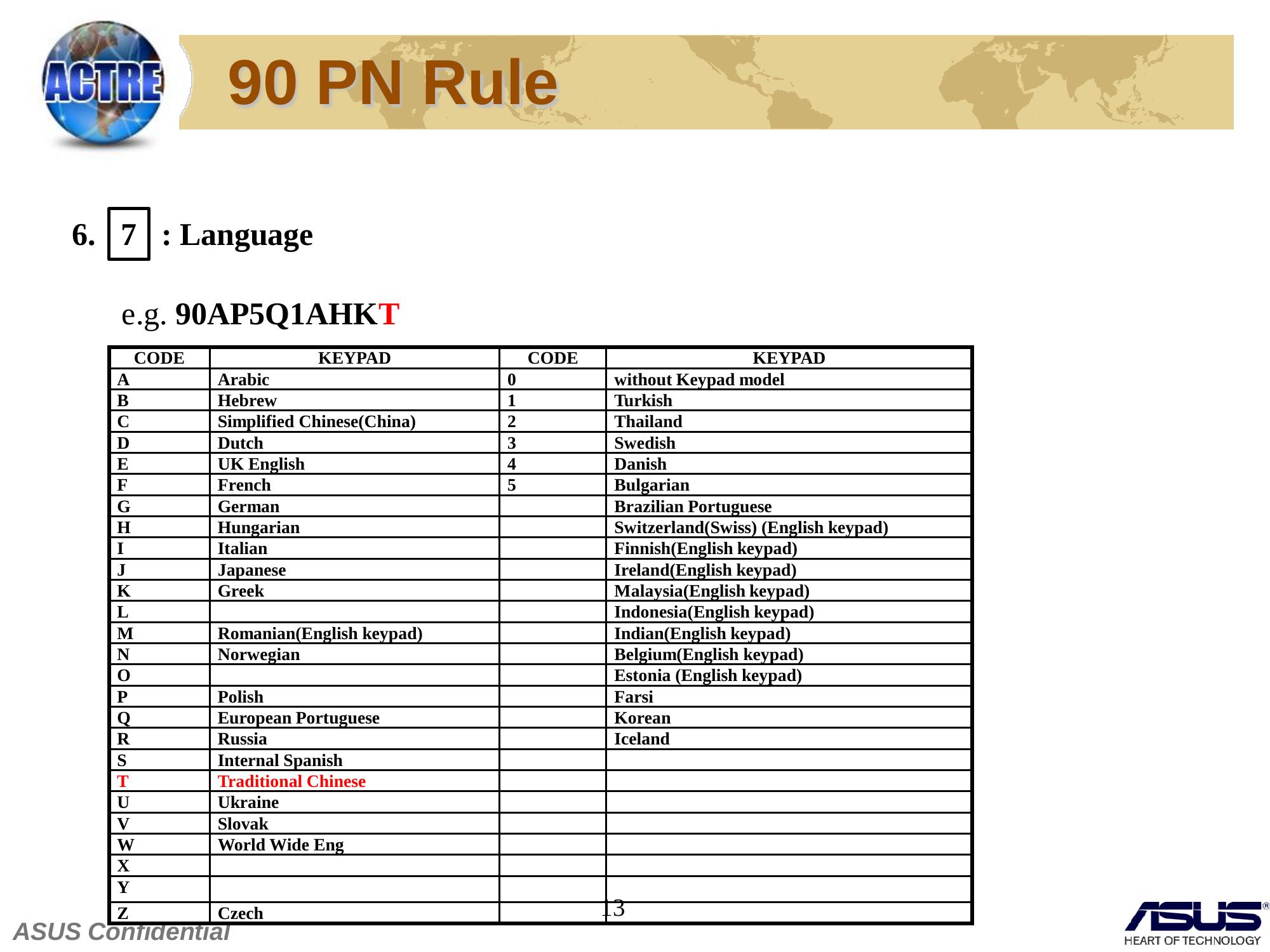

6. 7 : Language
e.g. 90AP5Q1AHKT
CODE KEYPAD CODE KEYPAD
A Arabic 0 without Keypad model
B Hebrew 1 Turkish
C Simplified Chinese(China) 2 Thailand
D Dutch 3 Swedish
E UK English 4 Danish
F French 5 Bulgarian
G German Brazilian Portuguese
H Hungarian Switzerland(Swiss) (English keypad)
I Italian Finnish(English keypad)
J Japanese Ireland(English keypad)
K Greek Malaysia(English keypad)
L Indonesia(English keypad)
M Romanian(English keypad) Indian(English keypad)
N Norwegian Belgium(English keypad)
O Estonia (English keypad)
P Polish Farsi
Q European Portuguese Korean
R Russia Iceland
S Internal Spanish
T Traditional Chinese
U Ukraine
V Slovak
W World Wide Eng
X
Y
13
Z Czech
ASUS Confidential

90 PN Rule
7. 8 : Keypad
e.g. 90AP5Q1AHKT0
CODE KEYPAD CODE KEYPAD
A Arabic 0 without Keypad model
B Hebrew 1 Turkish
C Simplified Chinese(China) 2 Thailand
D Dutch 3 Swedish
E UK English 4 Danish
F French 5 Bulgarian
G German Brazilian Portuguese
H Hungarian Switzerland(Swiss)(English keypad)
I Italian Finnish(English keypad)
J Japanese Ireland(English keypad)
K Greek Malaysia(English keypad)
L Indonesia(English keypad)
M Romanian(English keypad) Indian(English keypad)
N Norwegian Belgium(English keypad)
O Estonia(English keypad)
P Polish Farsi
Q European Portuguese Korean
R Russia Iceland
S Internal Spanish V Slovak
T Traditional Chinese(Taiwan) W World Wide Eng
U Ukraine Z Czech
14
ASUS Confidential

90 PN Rule

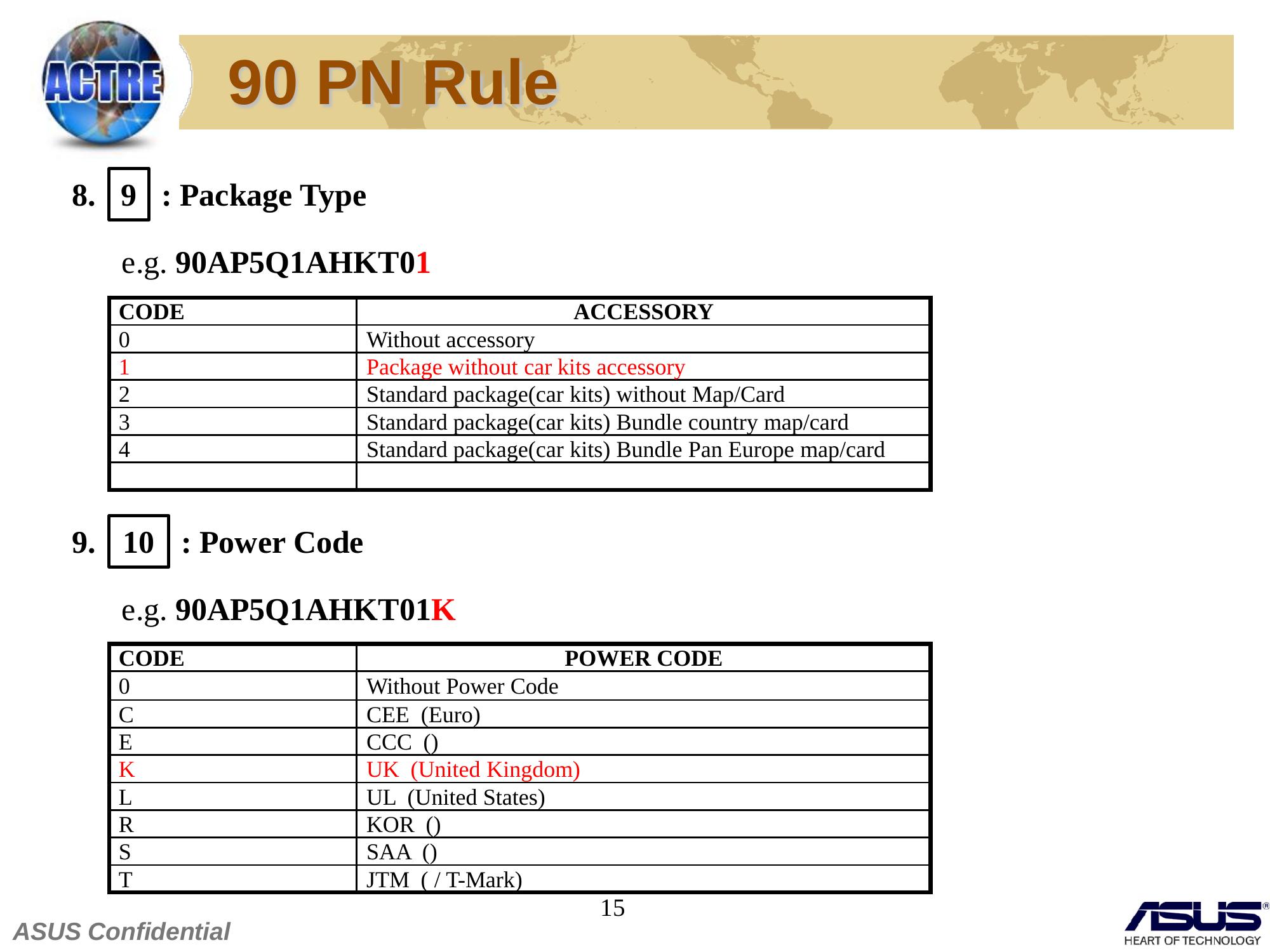

8. 9 : Package Type
e.g. 90AP5Q1AHKT01
CODE ACCESSORY
0 Without accessory
1 Package without car kits accessory
2 Standard package(car kits) without Map/Card
3 Standard package(car kits) Bundle country map/card
4 Standard package(car kits) Bundle Pan Europe map/card
9. 10 : Power Code
e.g. 90AP5Q1AHKT01K
CODE POWER CODE
0 Without Power Code
C CEE (Euro)
E CCC ()
K UK (United Kingdom)
L UL (United States)
R KOR ()
S SAA ()
T JTM ( / T-Mark)
15
ASUS Confidential

90 PN Rule
9. 11 : Warranty
e.g. 90AP5Q1AHKT01K1
CODE WARRANTY
1 1 year warranty card
2 2 years warranty card
3 3 year warranty card
10. 12 13 :ID code
e.g. 90AP5Q1AHKT01K10D
16
ASUS Confidential

90 PN Rule

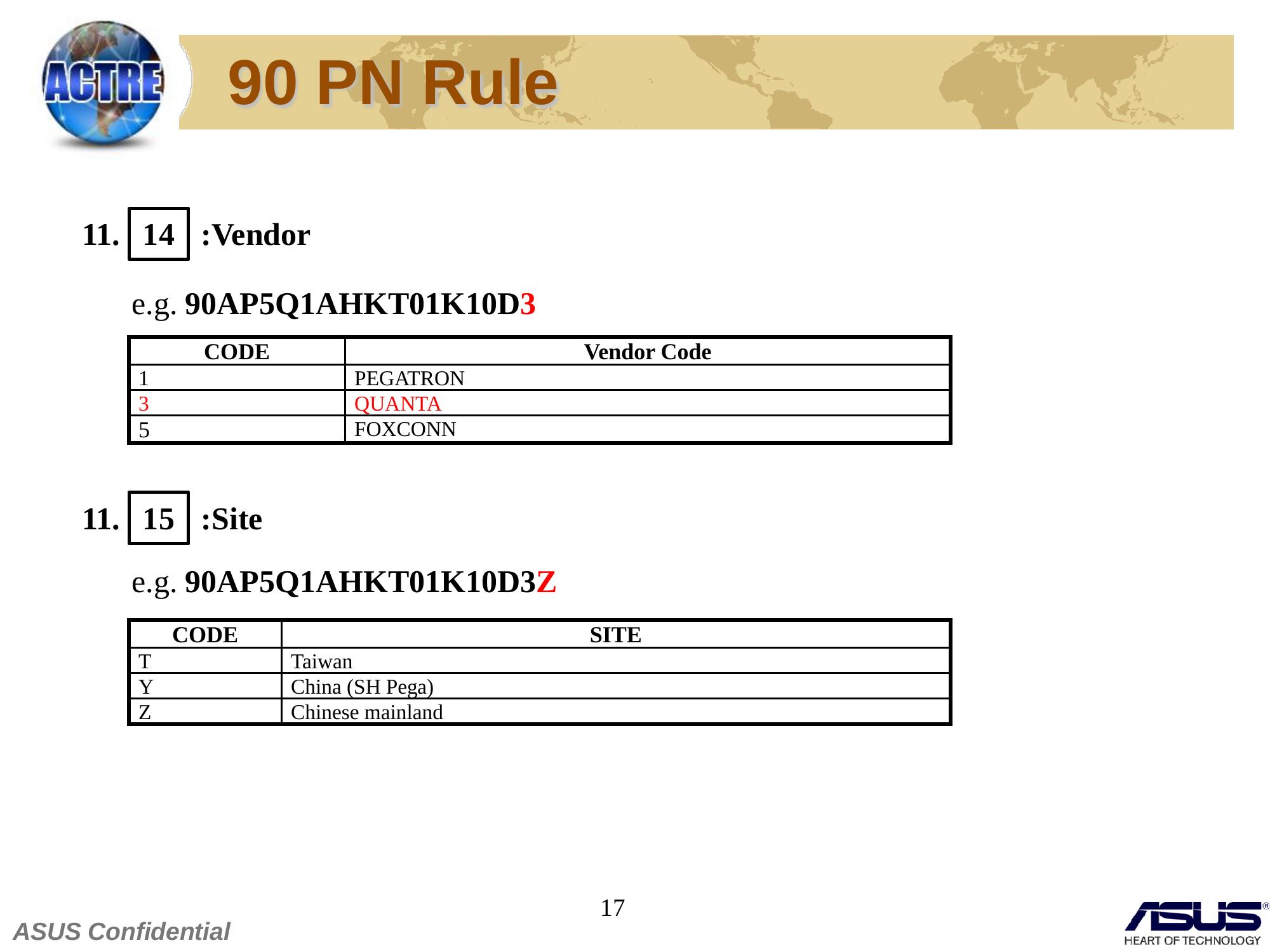

11. 14 :Vendor
e.g. 90AP5Q1AHKT01K10D3
CODE Vendor Code
1 PEGATRON
3 QUANTA
5 FOXCONN
11. 15 :Site
e.g. 90AP5Q1AHKT01K10D3Z
CODE SITE
T Taiwan
Y China (SH Pega)
Z Chinesemainland
17
ASUS Confidential

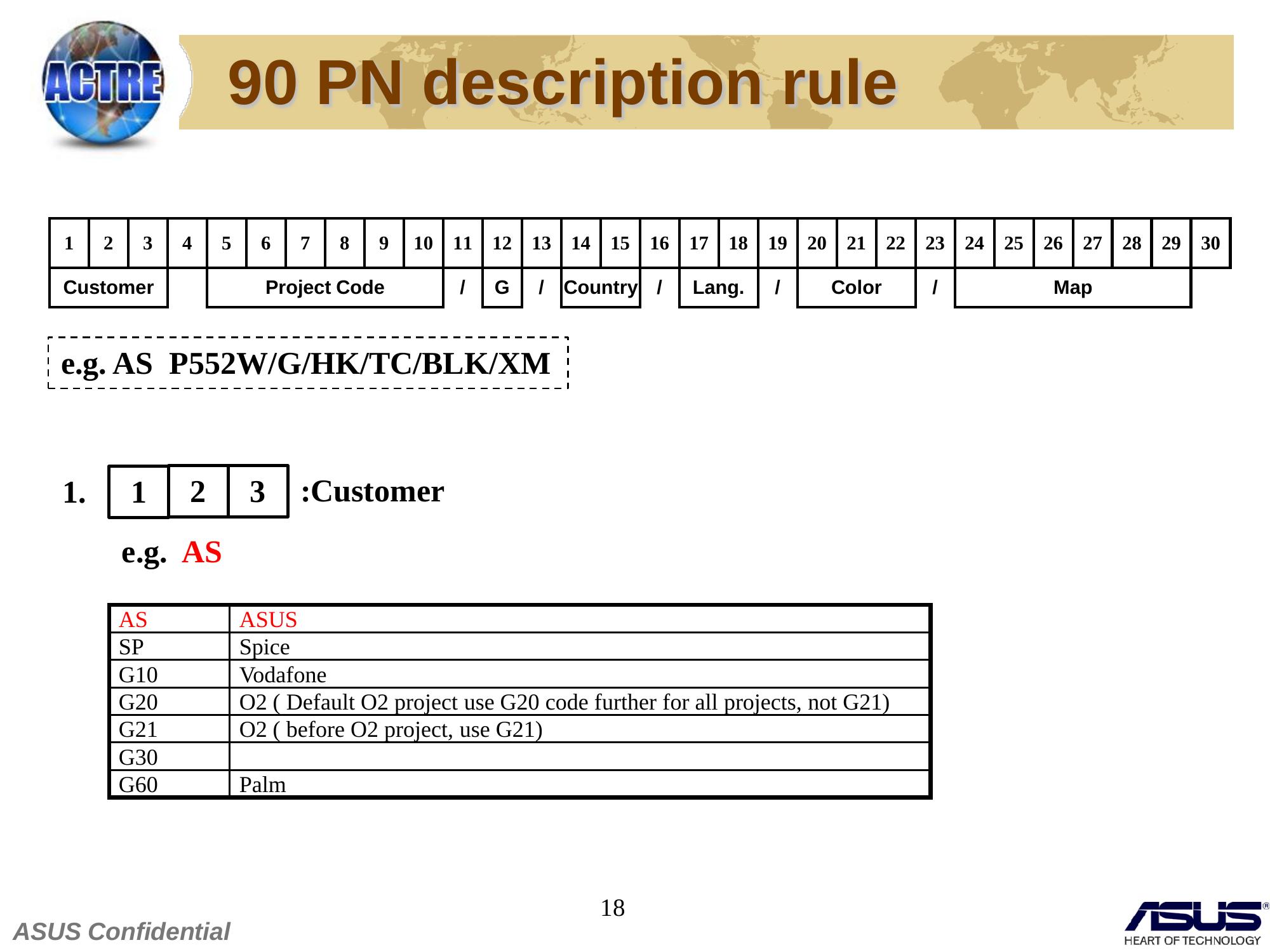

90 PN description rule
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
Customer Project Code / G / Country / Lang. / Color / Map
e.g. AS P552W/G/HK/TC/BLK/XM
1. 1 2 3 :Customer
e.g. AS
AS ASUS
SP Spice
G10 Vodafone
G20 O2 ( Default O2 project use G20 code further for all projects, not G21)
G21 O2 ( before O2 project, use G21)
G30
G60 Palm
18
ASUS Confidential

90 PN description rule

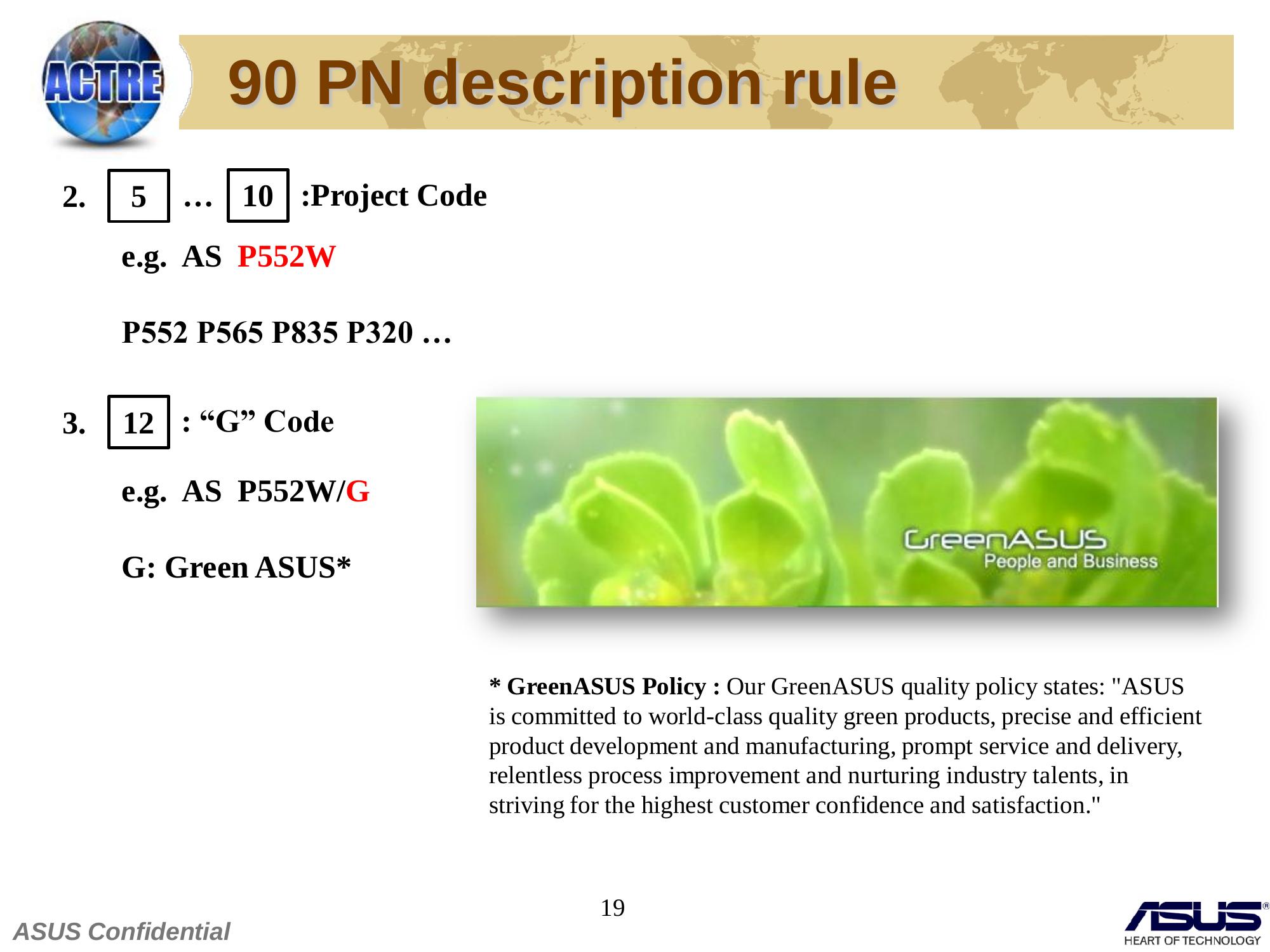

2. 5 … 10 :Project Code
e.g. AS P552W
P552 P565 P835 P320 …
3. 12 : “G” Code
e.g. AS P552W/G
G: Green ASUS*
* GreenASUS Policy : Our GreenASUS quality policy states: “ASUS
is committed to world-class quality green products, precise and efficient
product development and manufacturing, prompt service and delivery,
relentless process improvement and nurturing industry talents, in
striving for the highest customer confidence and satisfaction.”
19
ASUS Confidential

90 PN description rule
4. 14 15 : Country Code
e.g. AS P552W/G/HK
20
ASUS Confidential

90 PN description rule

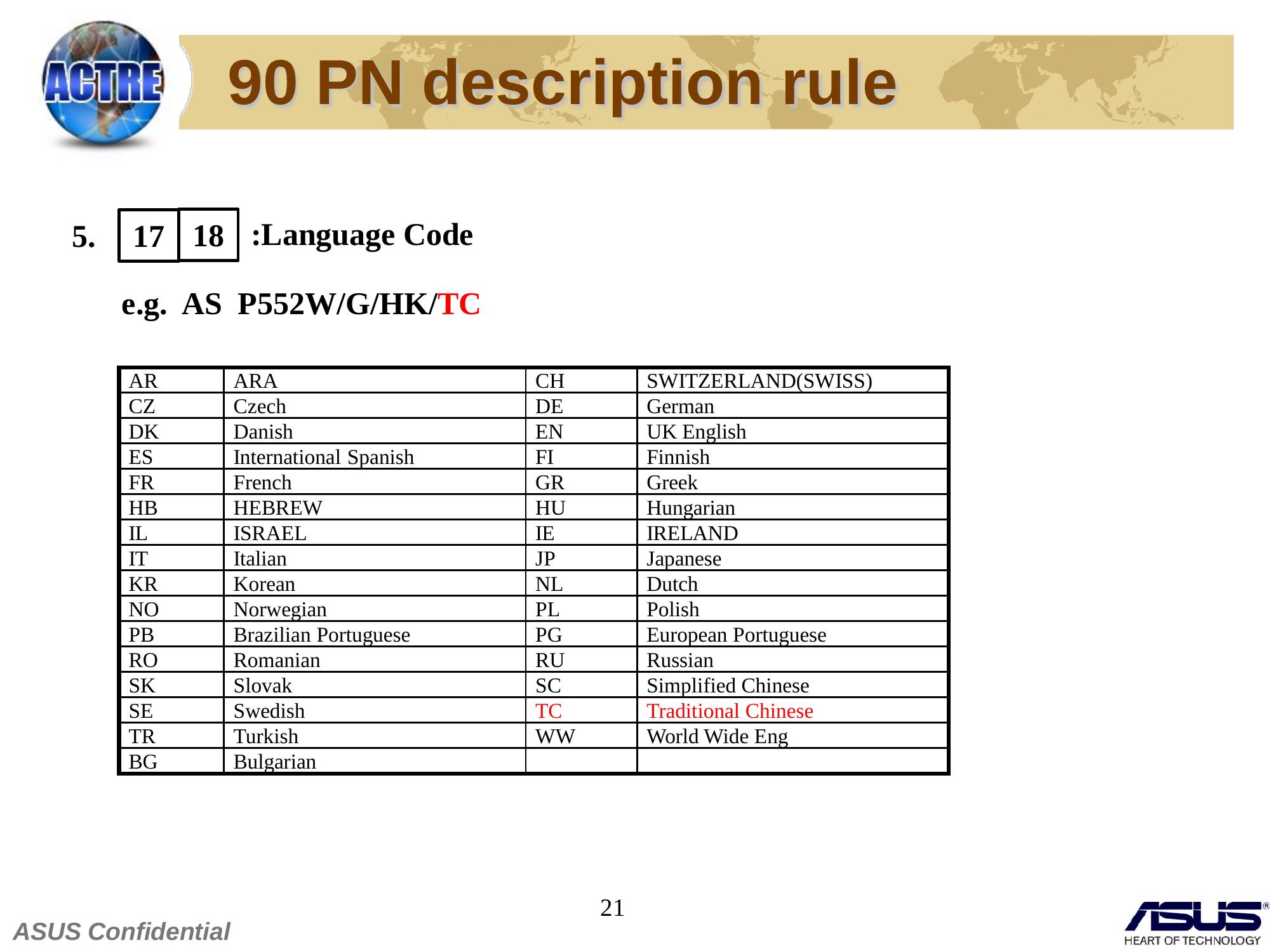

5. 17 18 :Language Code
e.g. AS P552W/G/HK/TC
AR ARA CH SWITZERLAND(SWISS)
CZ Czech DE German
DK Danish EN UK English
ES International Spanish FI Finnish
FR French GR Greek
HB HEBREW HU Hungarian
IL ISRAEL IE IRELAND
IT Italian JP Japanese
KR Korean NL Dutch
NO Norwegian PL Polish
PB Brazilian Portuguese PG European Portuguese
RO Romanian RU Russian
SK Slovak SC Simplified Chinese
SE Swedish TC Traditional Chinese
TR Turkish WW World Wide Eng
BG Bulgarian
21
ASUS Confidential

90 PN description rule
6. 20 21 22 :Color Code
e.g. AS P552W/G/HK/TC/BLK
CODE Color CODE Color
BLK Black ORG
WHT White GRY Gray
SLV Silver YEL Yellow
PNK Pink RED Red
BLU Blue BRN Brown
GRN Green PPL Purple
22
ASUS Confidential

90 PN description rule

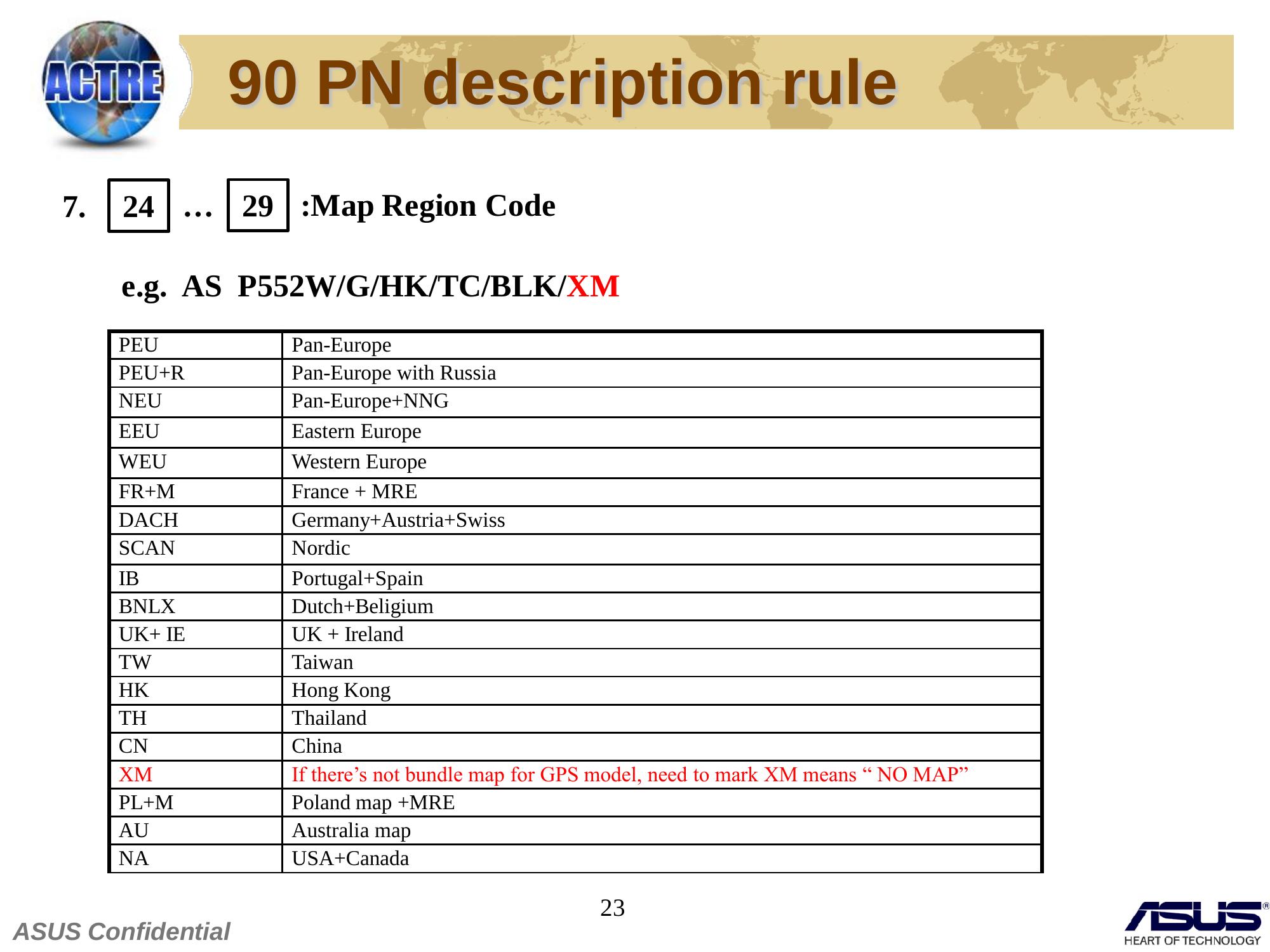

7. 24 … 29 :Map Region Code
e.g. AS P552W/G/HK/TC/BLK/XM
PEU Pan-Europe
PEU+R Pan-Europe with Russia
NEU Pan-Europe+NNG
EEU Eastern Europe
WEU Western Europe
FR+M France + MRE
DACH Germany+Austria+Swiss
SCAN Nordic
IB Portugal+Spain
BNLX Dutch+Beligium
UK+ IE UK + Ireland
TW Taiwan
HK Hong Kong
TH Thailand
CN China
XM If there’s not bundle map for GPS model, need to mark XM means “ NO MAP”
PL+M Poland map +MRE
AU Australia map
NA USA+Canada
23
ASUS Confidential

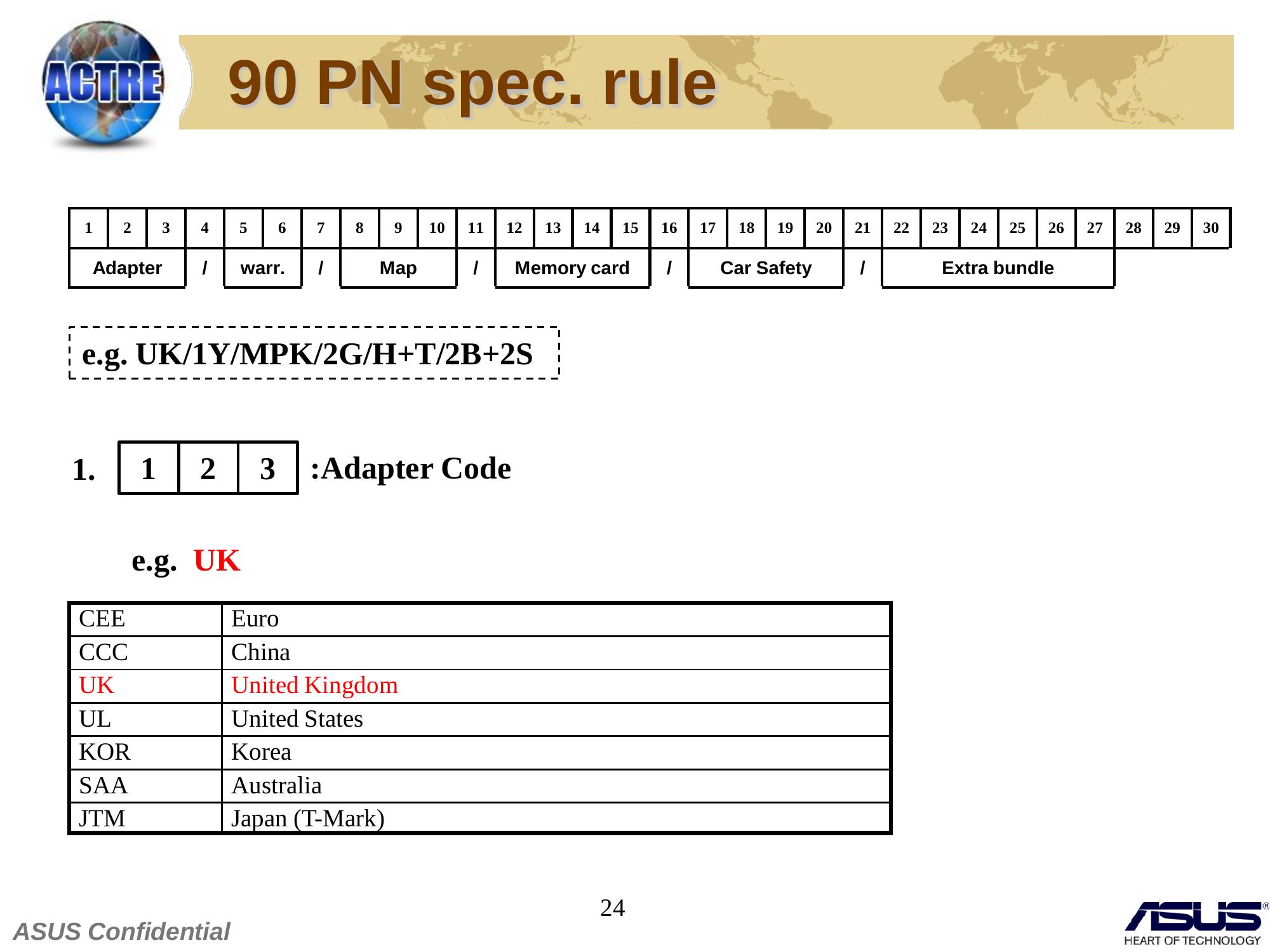

90 PN spec. rule
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30
Adapter / warr. / Map / Memory card / Car Safety / Extra bundle
e.g. UK/1Y/MPK/2G/H+T/2B+2S
1. 1 2 3 :Adapter Code
e.g. UK
CEE Euro
CCC China
UK United Kingdom
UL United States
KOR Korea
SAA Australia
JTM Japan (T-Mark)
24
ASUS Confidential

90 PN spec. rule
2. 5 6 : Warranty
e.g. UK/1Y
1Y 1 year warranty card
2Y 2 years warranty card
3Y 3 year warranty card
3. 8 9 10 : Map vendor
e.g. UK/1Y/MPK
AS ASUS GO
DES Destinator
IGO iGO
TOM Tomtom
MPK MapKing
PPG Papago
NAV SpeedNavi
LTU Lingtu
NVT Navitel
DDT RITU / DDT
25
ASUS Confidential

90 PN spec. rule

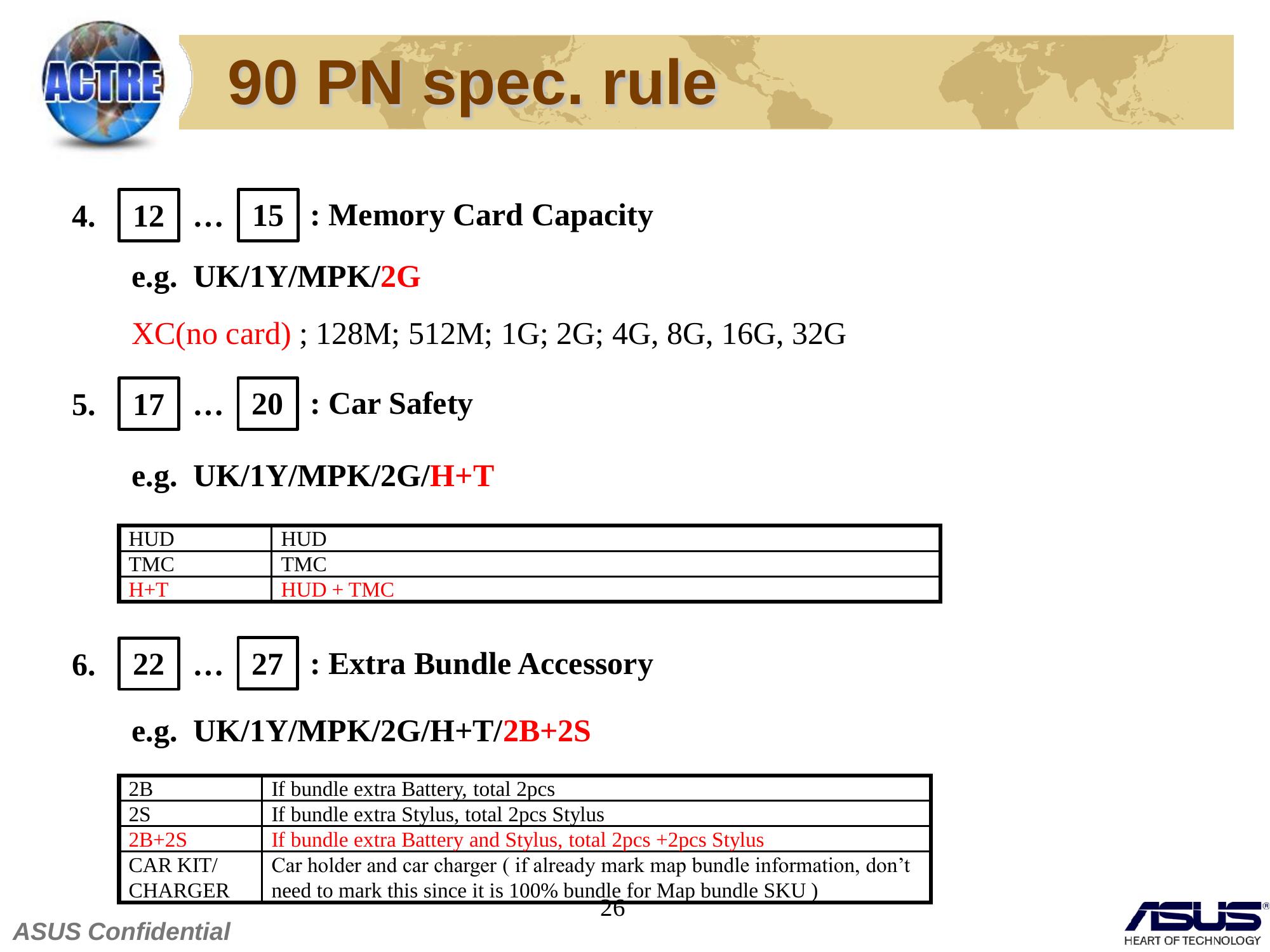

4. 12 … 15 : Memory Card Capacity
e.g. UK/1Y/MPK/2G
XC(no card) ; 128M; 512M; 1G; 2G; 4G, 8G, 16G, 32G
5. 17 … 20 : Car Safety
e.g. UK/1Y/MPK/2G/H+T
HUD HUD
TMC TMC
H+T HUD + TMC
6. 22 … 27 : Extra Bundle Accessory
e.g. UK/1Y/MPK/2G/H+T/2B+2S
2B If bundle extra Battery, total 2pcs
2S If bundle extra Stylus, total 2pcs Stylus
2B+2S If bundle extra Battery and Stylus, total 2pcs +2pcs Stylus
CAR KIT/ Car holder and car charger ( if already mark map bundle information, don’t
CHARGER need to mark this since it is 100% bundle for Map bundle SKU )
26
ASUS Confidential

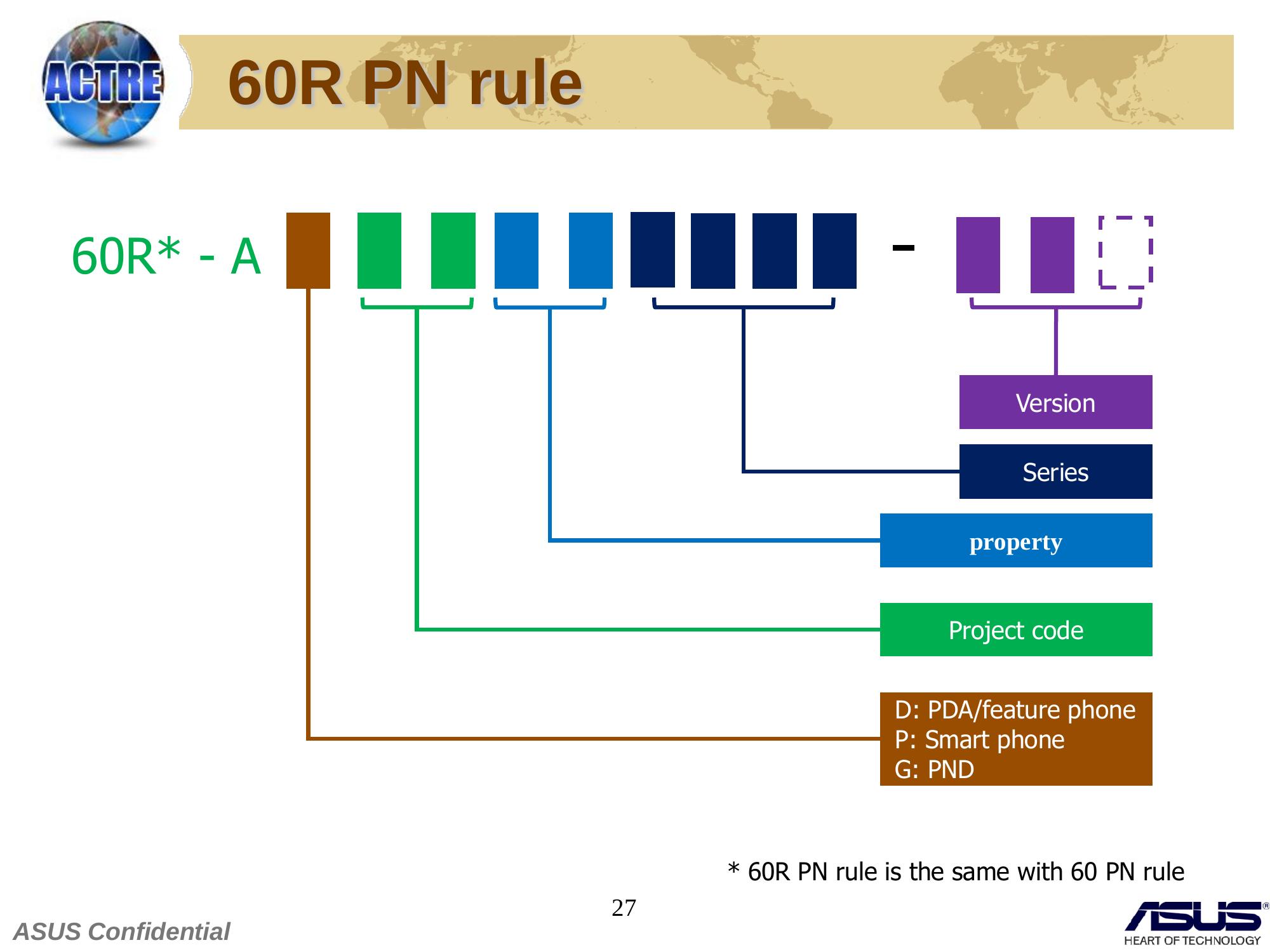

60R PN rule
60R* – A
Version
Series
property
Project code
D: PDA/feature phone
P: Smart phone
G: PND
* 60R PN rule is the same with 60 PN rule
27
ASUS Confidential

60R PN rule

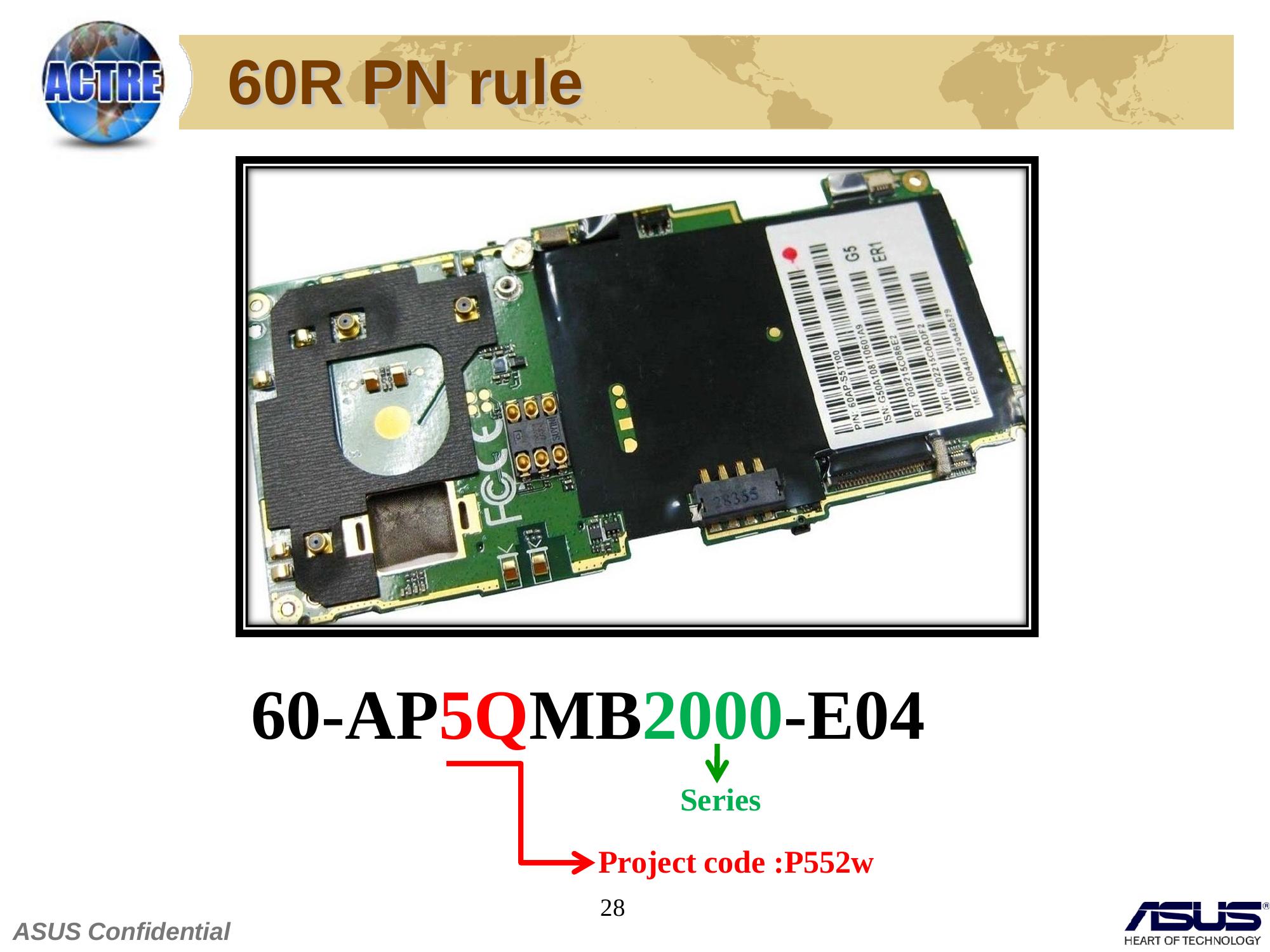

60-AP5QMB2000-E04
Series
Project code :P552w
28
ASUS Confidential

90R related common parts
90R belongs to CSC special customized parts for repair purpose
only
LCD/LCM module Main board
(not only LCM/LCD included) (With IMEI/BT/MAC label, rubber etc)
29
ASUS Confidential

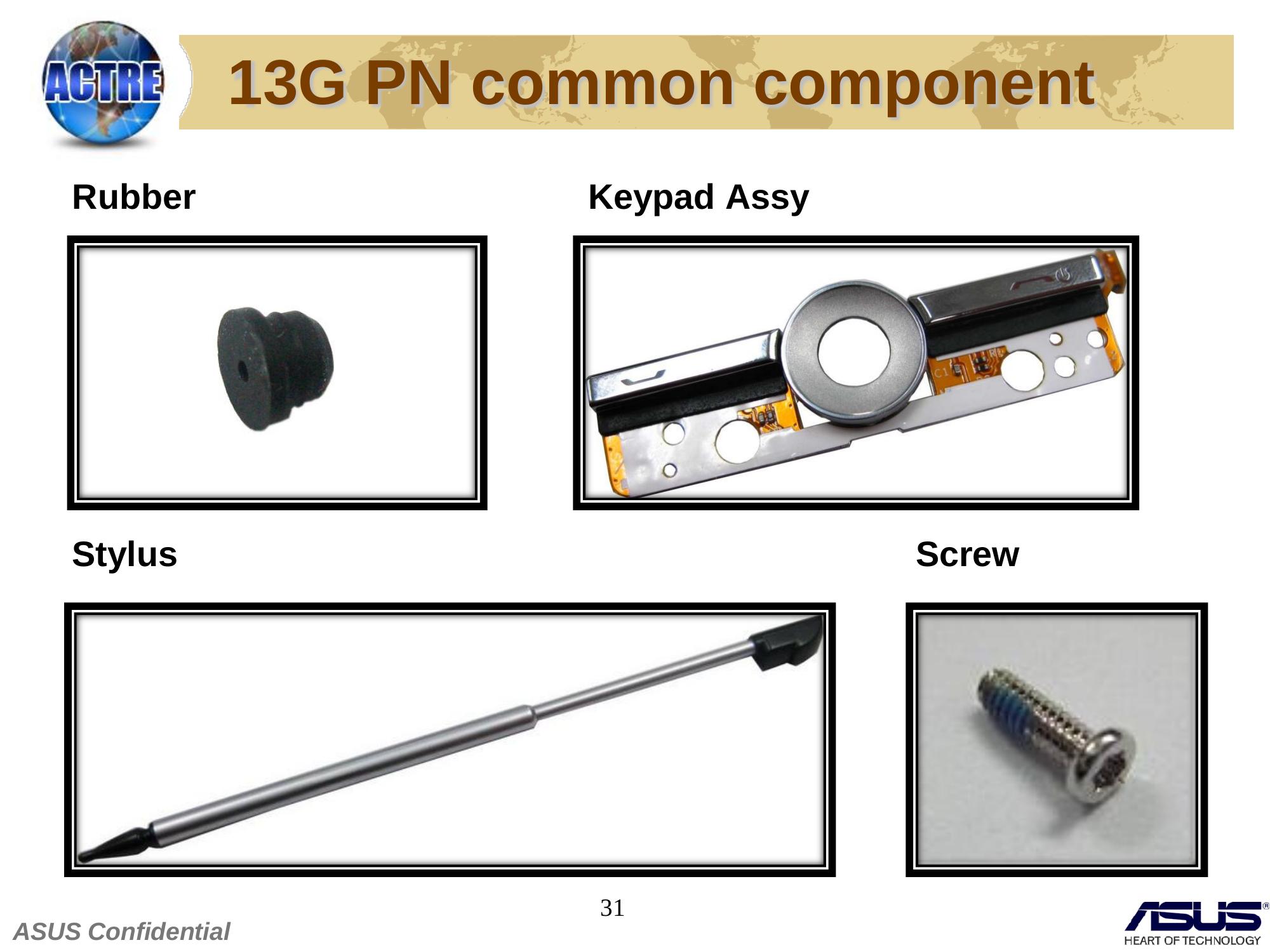

13G PN common component

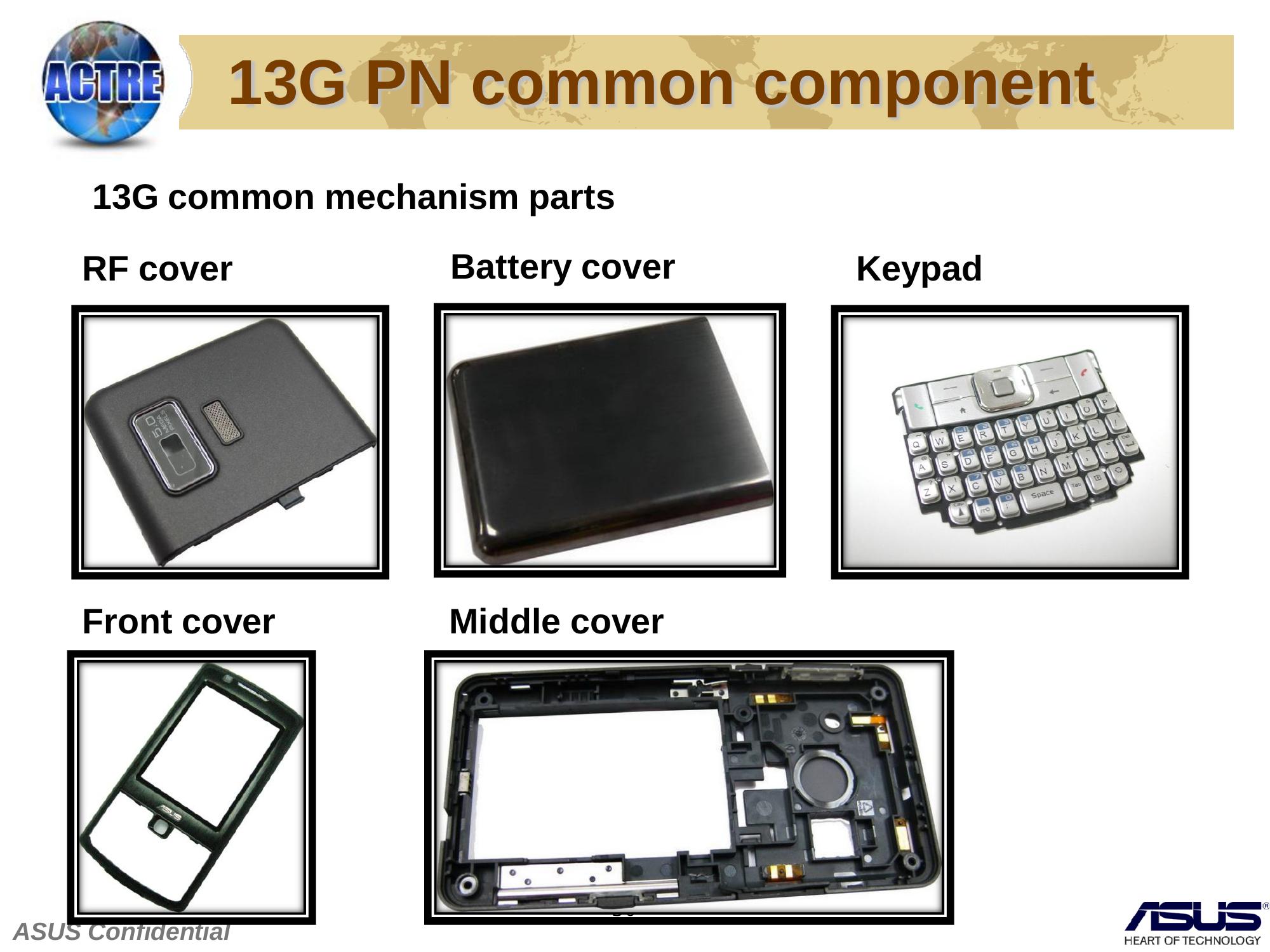

13G common mechanism parts
RF cover Battery cover Keypad
Front cover Middle cover
30
ASUS Confidential

13G PN common component
Rubber Keypad Assy
Stylus Screw
31
ASUS Confidential

04G PN
04G common system component
Earphone Adapter Receiver
Vibrator FPC Antenna Speaker
Camera
32
