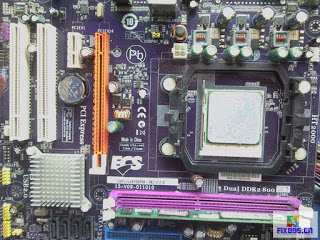

Elite GeForce6100PM-M2 Maintenance Log
Client could not take the keyboard for, visual no problem, should carry a keyboard and mouse data line values, the data line values are normal

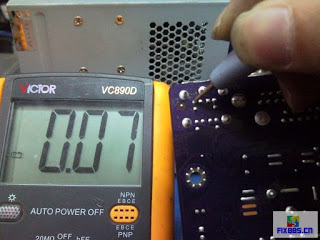

Power-on boot, measuring the keyboard power supply, and only 0.07V, the normal should be 5V

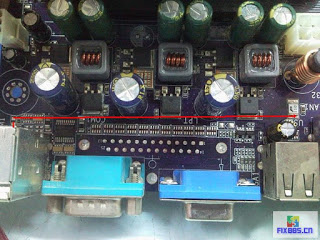

Unplug the power supply looked alignment, which the keyboard power supply circuit board line is clear, can be seen directly

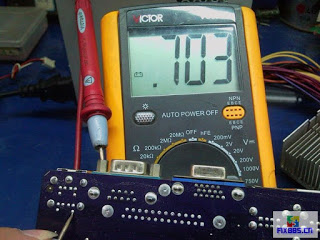

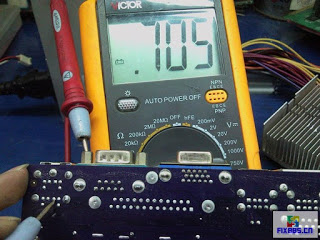

Volume of the two insurance, and found a damaged, for instance detail, special power-up test a bit voltage, the insurance end of 5V
The other side of 0V, the insurance damage
Breakdown Insurance Resistance

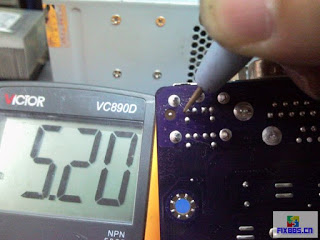

In the material board to find a similar insurance to the resistance put on after the power-measuring voltage, 5V normal
Plug in the keyboard, press DEL key to successfully enter the BIOS settings
