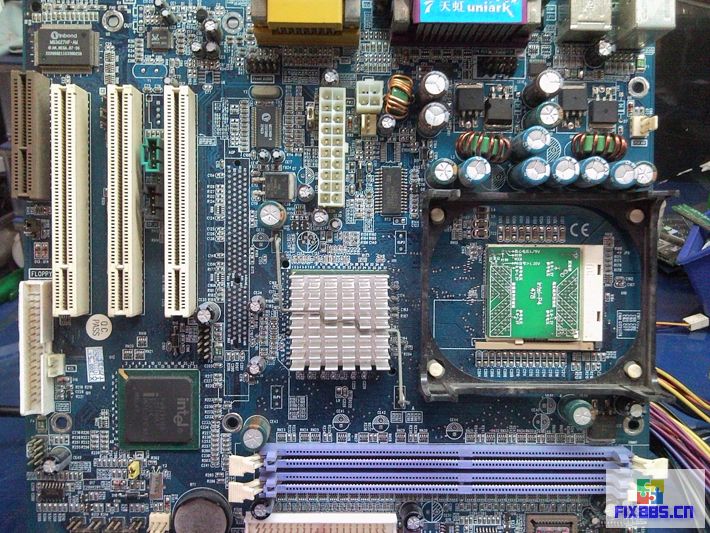

Rainbow 845 motherboard repair log
mahmoud
Rainbow 845 motherboard repair log

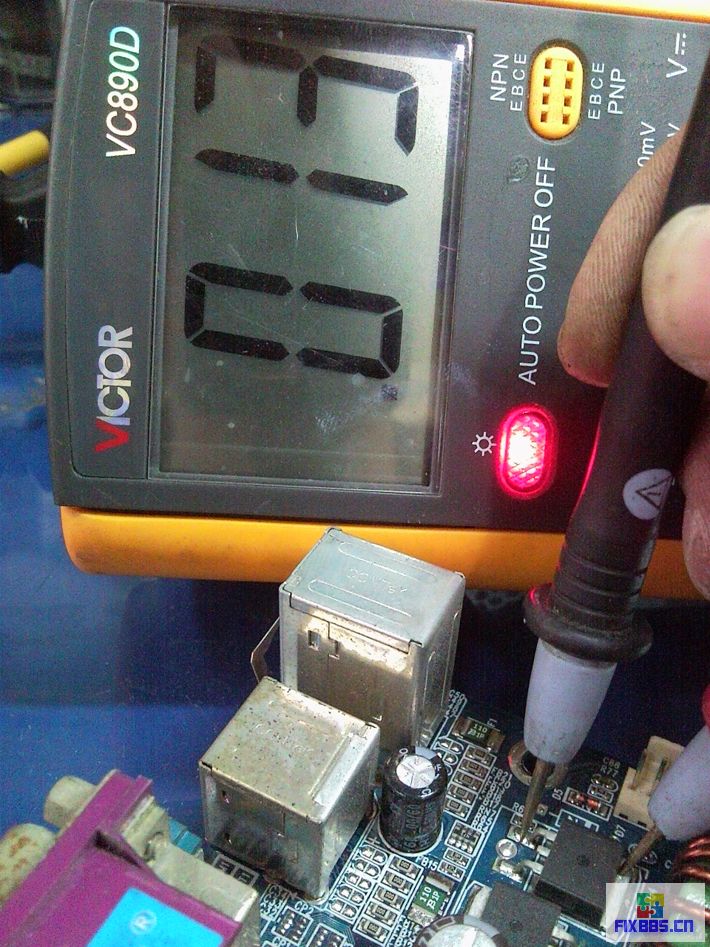

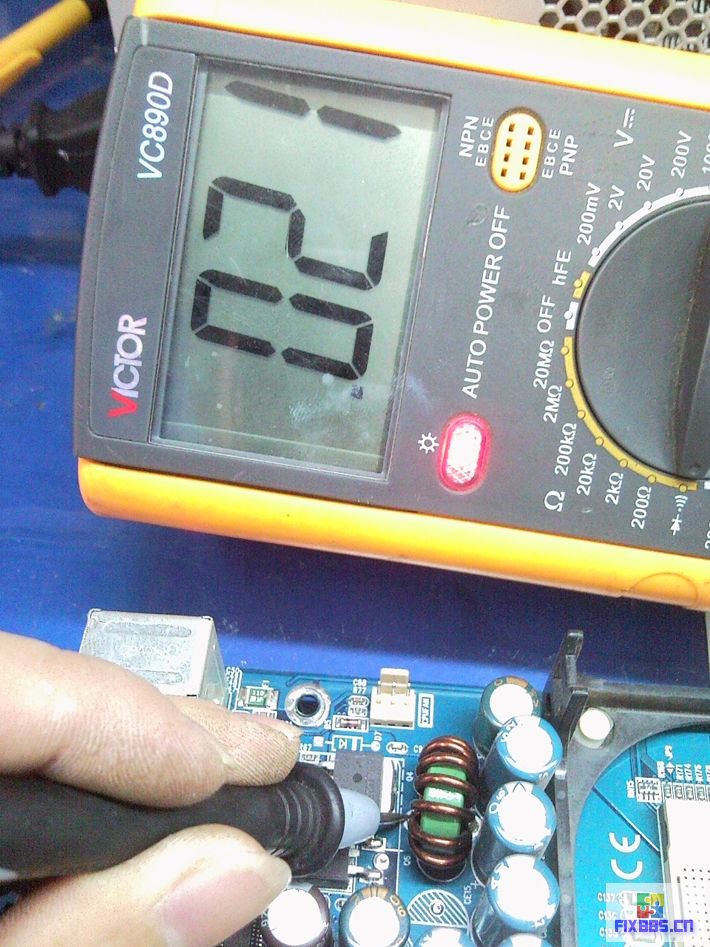

The value found VCORE playing as long as the right value of 21.478 should be over 30 as normal. Tell whether a short-circuit

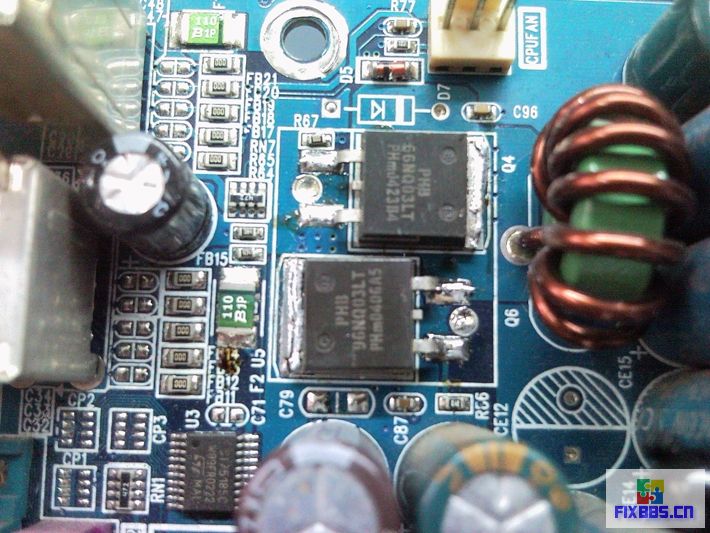

GD pole for measuring the tube and found that an under-barrel GD highly interlinked, to determine damage. Replacement

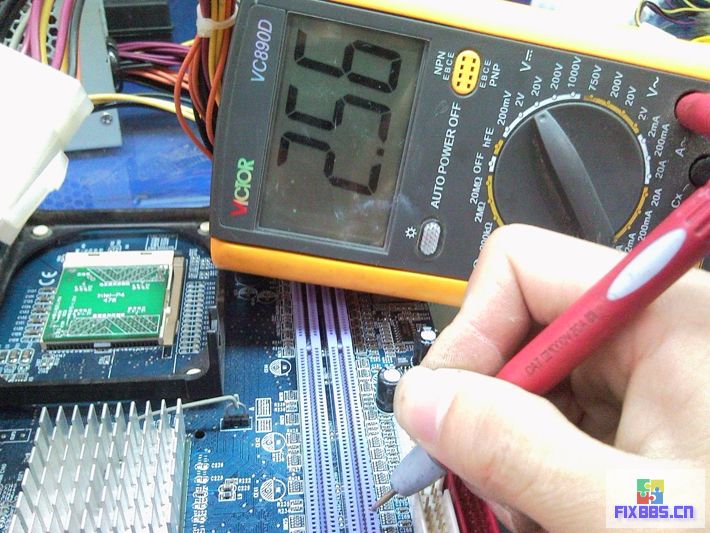

After a good replacement, power-on. Measuring the memory voltage to normal

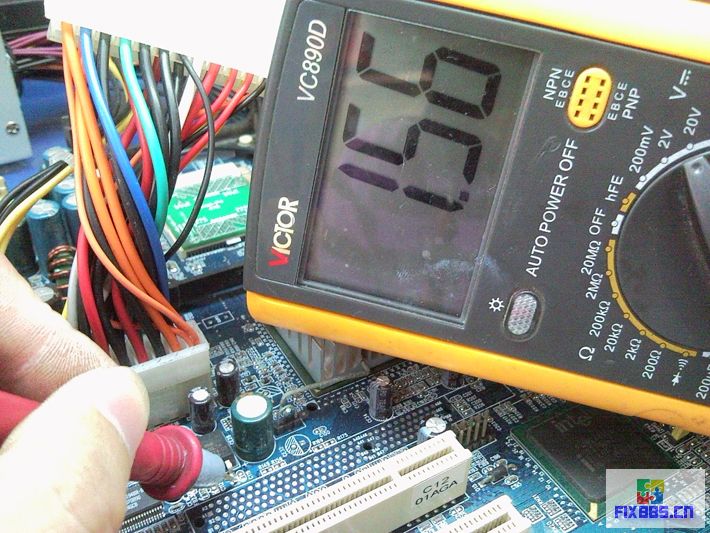

Northbridge normal supply of electricity

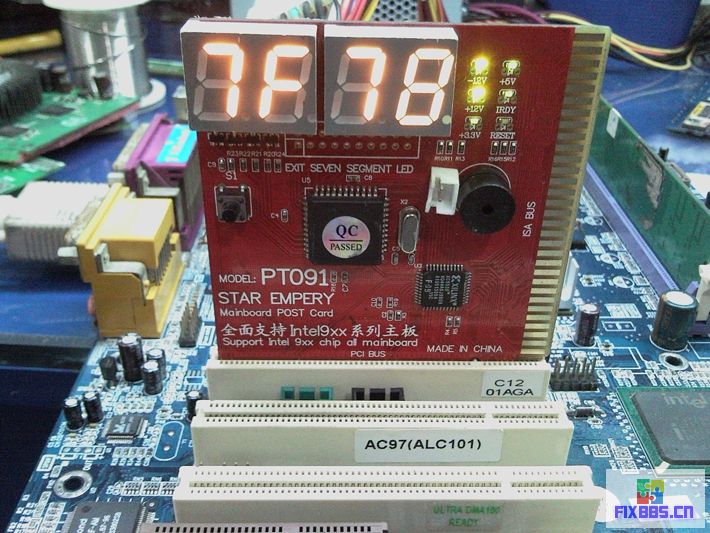

CPU power-on reset are also normal. On the U memory

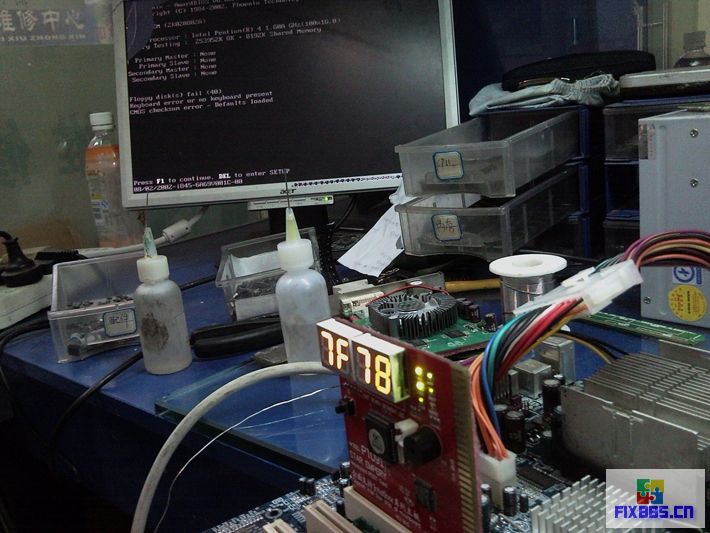

Boot code to run properly. Show
Boot code to run properly. Show
